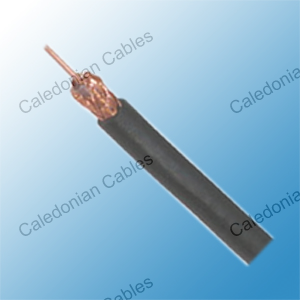

    RG 58 U43(URM 43)

    Construction

    Inner conductor

    Plain copper

    0.90 mm

    Dielectric

    Low density PE

    Φ2.95 ± 0.10 mm

    Outer conductor (shield)

    Plain copper

    96 x 0.15 mm

    Shield coverage



    95%

    Sheath

    PVC or LSZH

    Φ5.00 ± 0.10 mm

    Electrical & Mechanical Characteristics

    Impedance

    50±3 Ohm

    Nominal capacitance

    100 pF/m

    Velocity of propagation

    66%

    Insulation resistance

    >2000 Mohm.Km

    Inner conductor resistance

    28 Ohm/Km

    Outer conductor resistance

    16.5 Ohm/Km

    Operating temperature range

     -30 °C - +70 °C

    Copper weight

    22.1 Kg/Km

    Cable weight (approx.)

    42.5 Kg/Km

    Screening effectiveness

    >55 dB

    Attenuation

    Frequency(MHz)

    Attenuation (dB/100 m)

    Attenuation (dB/100ft)

    50 9.0 2.74

    100

    13

    3.96

    200

    19.3

    5.88

    400

    28.1

    8.57

    500

    31.9

    9.73

    600

    35.3

    10.76

    860

    43.8

    13.35

    1000

    48.5

    14.79

    Return Loss

    30-300 MHz

    >32dB

    300-600 MHz

    >28dB

    600-900 MHz

    >23dB
