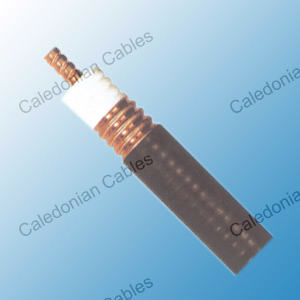

    RF42(1-5/8″)

    Construction

    Inner conductor

    Corrugated copper tube

    Φ17.4 mm

    Dielectric

    Foam PE

    Φ42.8 mm

    Outer conductor

    Corrugated copper

    Φ46.5 mm

    Sheath

    PE/LSOH

    Φ49.5 mm

    Electrical & Mechanical Characteristics

    Impedance

    50±3 Ohm

    Nominal capacitance

    76 pF/m

    Velocity of propagation

    88%

    Insulation resistance

    >5000 Mohm.Km

    Inner conductor resistance

    0.82 Ohm/Km

    Outer conductor resistance

    0.43 Ohm/Km

    Installation temperature range

    -40°C - +60 °C

    Operating temperature range

    -55°C - +85°C

    Test voltage

    11 KV

    Cable weight (approx.)

    1340kg/km

    Operating Frequency Band

    1 – 2700 MHz

    Screening effectiveness

    >120dB

    Attenuation

    Frequency

    Attenuation

    Attenuation

    Frequency

    Attenuation

    Attenuation

    (MHz)

    (dB/100m)

    (dB/100ft)

    (MHz)

    (dB/100m)

    (dB/100ft)

    10 0.20 0.06 1500 3.10 0.94

    100

    0.67

    0.2

    1700

    3.35

    1.02

    150

    0.83

    0.25

    1800

    3.47

    1.06

    200

    0.98

    0.3

    1900

    3.66

    1.12

    300

    1.22

    0.37

    2000

    3.71

    1.13

    450

    1.53

    0.47

    2100

    3.82

    1.16

    500

    1.63

    0.5

    2200

    3.93

    1.2

    700

    1.97

    0.6

    2300

    4.05

    1.23

    800

    2.13

    0.65

    2500

    4.27

    1.3

    900

    2.28

    0.69

    2700

    4.48

    1.37

    Return Loss

    806-960 MHz

    24.3dB

    1700-2000 MHz

    24.3dB
