    Unscreened TFN Cable

    Applications

    These cables are use in class 1, Division 2 Hazardous locations, may be installed in trays, wire ways, ducts, conduit and aerially when properly supported by a messenger. They are approved for direct burial, wet or dry locations and outdoors in cable trays where a sunlight resistant rating is required.

    Standards

    ICEA S-73-532

    UL 1277

    UL 66

    Construction

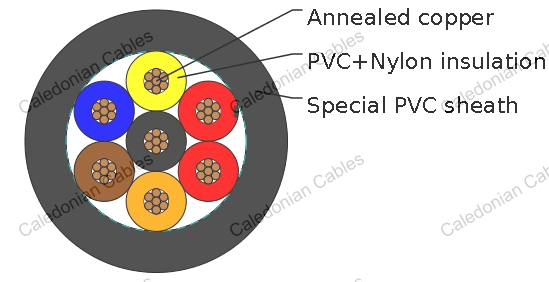

    Conductor : Bare, annealed copper conforming to ASTM B3 and B8

    Insulation : Flame-retardant PVC/Nylon type TFN per UL 66

    Color coded per Method #1-E2 per ICEA S-73-532

    Binder tape

    Ripcord : Nylon

    Jacket : Special PVC, flame retardant, UL listed sunlight and moisture resistant, meeting the requirements of UL 1277. Color : Black

    Chemical resistance : Aliphatic and aromatic hydrocarbon resistance

    16 AWG, 600V, Rated 90°C

    No. of Cores PVC Thickness Nylon Thickness Jacket Thickness Nom. O.D. Approx. Weight Ampacity
    mm mm mm mm kg/km amps
    2 Flat 0.38 0.10 1.14 4.83 x 7.37 67 8.0
    3 0.38 0.10 1.14 7.77 86 8.0
    4 0.38 0.10 1.14 8.38 106 6.4
    5 0.38 0.10 1.14 9.14 128 6.4
    6 0.38 0.10 1.14 9.91 149 6.4
    7 0.38 0.10 1.14 9.91 164 5.6
    8 0.38 0.10 1.14 10.80 190 5.6
    9 0.38 0.10 1.14 11.48 210 5.6
    10 0.38 0.10 1.14 12.19 234 4.0
    11 0.38 0.10 1.14 12.34 246 4.0
    12 0.38 0.10 1.14 12.83 266 4.0
    13 0.38 0.10 1.14 12.95 305 4.0
    14 0.38 0.10 1.52 14.12 326 4.0
    15 0.38 0.10 1.52 14.48 345 4.0
    16 0.38 0.10 1.52 15.09 357 4.0
    19 0.38 0.10 1.52 15.49 421 4.0
    20 0.38 0.10 1.52 16.26 446 4.0
    25 0.38 0.10 1.52 18.16 546 3.6
    30 0.38 0.10 1.52 19.43 640 3.6
    37 0.38 0.10 2.03 21.99 815 3.2
    40 0.38 0.10 2.03 22.68 869 3.2
    45 0.38 0.10 2.03 23.95 966 2.8
    50 0.38 0.10 2.03 24.88 1025 2.8

    18 AWG, 600V, Rated 90°C

    No. of Cores PVC Thickness Nylon Thickness Jacket Thickness Nom. O.D. Approx. Weight Ampacity
    mm mm mm mm kg/km amps
    2 Flat 0.38 0.10 1.14 4.57 x 6.86 52 6.0
    3 0.38 0.10 1.14 7.31 67 6.0
    4 0.38 0.10 1.14 7.91 80 4.8
    5 0.38 0.10 1.14 8.56 98 4.8
    6 0.38 0.10 1.14 9.25 113 4.8
    7 0.38 0.10 1.14 9.25 122 4.2
    8 0.38 0.10 1.14 9.95 137 4.2
    9 0.38 0.10 1.14 10.69 160 4.2
    10 0.38 0.10 1.14 11.37 175 3.0
    11 0.38 0.10 1.14 11.53 182 3.0
    12 0.38 0.10 1.14 11.87 195 3.0
    13 0.38 0.10 1.14 12.08 207 3.0
    14 0.38 0.10 1.14 12.47 220 3.0
    15 0.38 0.10 1.14 12.79 274 3.0
    19 0.38 0.10 1.52 14.58 312 3.0
    20 0.38 0.10 1.52 14.99 323 3.0
    25 0.38 0.10 1.52 16.71 405 2.7
    30 0.38 0.10 1.52 17.80 458 2.7
    37 0.38 0.10 1.52 19.15 564 2.4
    40 0.38 0.10 1.52 19.86 591 2.4
    45 0.38 0.10 1.52 22.02 658 2.1
    50 0.38 0.10 2.03 22.80 768 2.1
