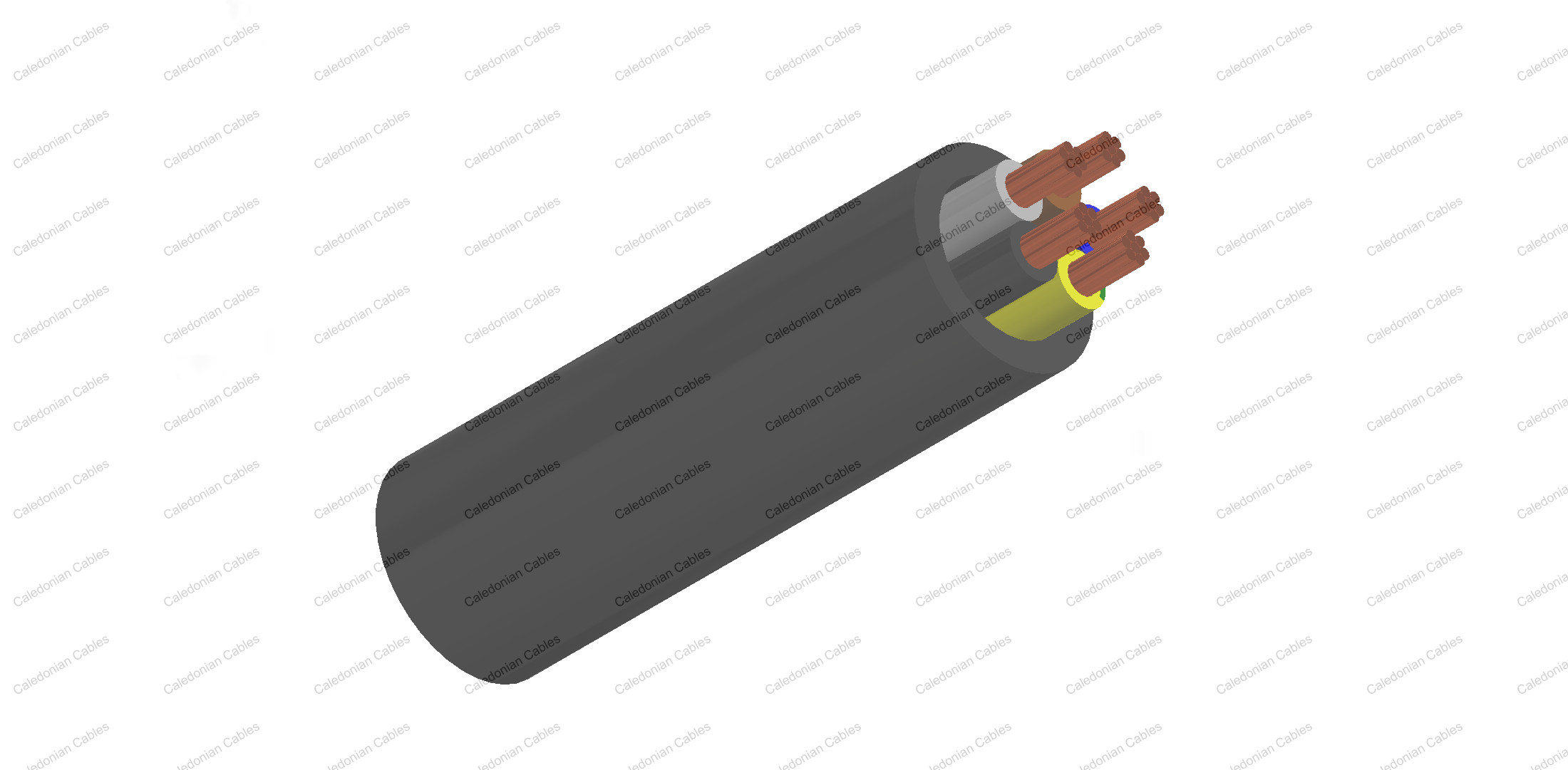

    600V/1000V XLPE Insulated Unarmored Cable to IEC 60502-1

    Applications

    These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where chemicals may be present.

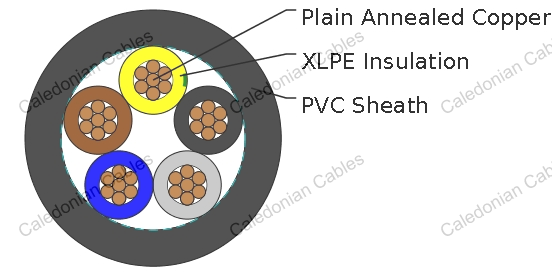

    Construction

    Conductor : Solid or stranded copper

    Insulation : XLPE

    Core identification

    1 Core : Red or Black

    2 Cores : Red, Black

    3 Cores : Red, Yellow, Blue

    4 Cores : Red, Yellow, Blue, Black

    5 Cores : Red, Yellow, Blue, Black, Green

    Above 5 cores : Black core printed with white numbers

    Sheath : Special PVC. Color : black

    Properties

    Rated voltage : 600V/1000V

    Fire retardance : IEC 60332-3-22

    Operating temperature : -20~60°C

    Max. conductor operating temperature : 90°C

    Chemical resistance : Aliphatic and aromatic hydrocarbon resistance

    No. of Cores Conductor Corss-section Conductor Type Diameter over Insulation Min. O.D. Max. O.D. Approx. Weight
    mm² mm mm mm kg/km
    1 25 Stranded, Class 2 7.9 10.6 11.9 325
    1 35 Stranded, Class 2 8.9 11.6 13.0 422
    1 50 Stranded, Class 2 10.2 13.3 14.8 562
    1 70 Stranded, Class 2 12.0 16.1 17.8 807
    1 95 Stranded, Class 2 13.55 17.61 19.4 1057
    1 120 Stranded, Class 2 15.26 19.26 21.2 1296
    1 150 Stranded, Class 2 16.97 21.12 23.3 1585
    1 185 Stranded, Class 2 19.05 23.13 25.5 1962
    1 240 Stranded, Class 2 21.6 26.0 28.7 2547
    1 300 Stranded, Class 2 24.2 28.71 31.7 3162
    1 400 Stranded, Class 2 27.7 32.3 35.6 4010
    1 500 Stranded, Class 2 31.4 36.28 40.0 5111
    1 630 Stranded, Class 2 36.2 41.32 45.6 6560
    2 1.5 Solid, Class 1 2.79 9.38 10.6 143
    2 1.5 Stranded, Class 2 2.9 9.7 10.9 152
    2 2.5 Solid, Class 1 3.15 10.1 11.3 176
    2 2.5 Stranded, Class 2 3.31 10.6 11.9 189
    2 4 Solid, Class 1 3.61 11.02 12.3 224
    2 4 Stranded, Class 2 3.83 11.7 13.0 244
    2 6 Stranded, Class 2 4.35 12.5 13.9 297
    2 10 Stranded, Class 2 5.25 14.3 15.8 419
    2 16 Stranded, Class 2 6.25 16.3 18.0 586
    2 25 Stranded, Class 2 7.9 19.5 21.5 873
    2 35 Stranded, Class 2 8.9 21.44 23.6 1126
    2 50 Stranded, Class 2 10.2 24.06 26.5 1469
    2 70 Stranded, Class 2 12.0 27.55 30.4 2010
    2 95 Stranded, Class 2 13.55 30.55 33.7 2632
    2 120 Stranded, Class 2 15.26 33.87 37.4 3270
    2 150 Stranded, Class 2 16.97 37.77 41.7 4046
    2 185 Stranded, Class 2 19.05 42.0 46.3 5051
    2 240 Stranded, Class 2 21.6 47.34 52.2 6543
    2 300 Stranded, Class 2 24.2 52.77 58.2 8175
    3 1.5 Solid, Class 1 2.79 9.83 11.0 161
    3 1.5 Stranded, Class 2 2.9 10.17 11.4 170
    3 2.5 Solid, Class 1 3.15 10.6 11.9 202
    3 2.5 Stranded, Class 2 3.31 11.14 12.4 215
    3 4 Solid, Class 1 3.61 11.6 13.0 263
    3 4 Stranded, Class 2 3.83 12.33 13.7 284
    3 6 Stranded, Class 2 4.35 13.2 14.7 353
    3 10 Stranded, Class 2 5.25 15.14 16.7 508
    3 16 Stranded, Class 2 6.25 17.27 19.0 724
    3 25 Stranded, Class 2 7.9 20.72 22.9 1088
    3 35 Stranded, Class 2 8.9 22.81 25.2 1420
    3 50 Stranded, Class 2 10.2 25.64 28.3 1864
    3 70 Stranded, Class 2 12.0 29.41 32.4 2568
    3 95 Stranded, Class 2 13.55 32.66 36.0 3400
    3 120 Stranded, Class 2 15.26 36.43 40.2 4247
    3 150 Stranded, Class 2 16.97 40.41 44.6 5231
    3 185 Stranded, Class 2 19.05 45.15 49.8 6561
    3 240 Stranded, Class 2 21.6 50.69 55.9 8496
    3 300 Stranded, Class 2 24.2 56.91 62.8 10681
    4 1.5 Solid, Class 1 2.79 10.55 11.8 187
    4 1.5 Stranded, Class 2 2.9 10.94 12.2 197
    4 2.5 Solid, Class 1 3.15 11.42 12.8 238
    4 2.5 Stranded, Class 2 3.31 12.03 13.4 252
    4 4 Solid, Class 1 3.61 12.5 14.0 314
    4 4 Stranded, Class 2 3.83 13.36 14.8 337.2
    4 6 Stranded, Class 2 4.35 14.33 15.9 424
    4 10 Stranded, Class 2 5.25 16.5 18.2 625
    4 16 Stranded, Class 2 6.25 18.85 20.8 901
    4 25 Stranded, Class 2 7.9 22.72 25.1 1359
    4 35 Stranded, Class 2 8.9 25.16 27.8 1791
    4 50 Stranded, Class 2 10.2 28.21 31.1 2348
    4 70 Stranded, Class 2 12.0 32.44 35.8 3250
    4 95 Stranded, Class 2 13.55 36.27 40.0 4334
    4 120 Stranded, Class 2 15.26 40.67 44.9 5447
    4 150 Stranded, Class 2 16.97 44.88 49.5 6688
    4 185 Stranded, Class 2 19.05 50.34 55.5 8400
    4 240 Stranded, Class 2 21.6 56.72 62.6 10917
    4 300 Stranded, Class 2 24.2 63.4 69.9 13658
    5 1.5 Solid, Class 1 2.79 11.3 12.7 220
    5 1.5 Stranded, Class 2 2.9 11.77 13.1 232
    5 2.5 Solid, Class 1 3.15 12.3 13.7 281
    5 2.5 Stranded, Class 2 3.31 12.98 14.4 297
    5 4 Solid, Class 1 3.61 13.6 15.0 377
    5 4 Stranded, Class 2 3.83 14.47 16.0 403
    5 6 Stranded, Class 2 4.35 15.55 17.2 511
    5 10 Stranded, Class 2 5.25 17.93 19.8 747
    5 16 Stranded, Class 2 6.25 20.54 22.7 1082
    5 25 Stranded, Class 2 7.9 24.96 27.5 1650
    5 35 Stranded, Class 2 8.9 27.58 30.4 2185
    5 50 Stranded, Class 2 10.2 30.98 34.2 2873
    5 70 Stranded, Class 2 12.0 36.08 39.8 4017
    5 95 Stranded, Class 2 13.55 40.54 44.7 5364
    5 120 Stranded, Class 2 15.26 45.2 49.9 6678
    5 150 Stranded, Class 2 16.97 50.07 55.2 8197
    5 185 Stranded, Class 2 19.05 55.91 61.7 10257
    5 240 Stranded, Class 2 21.6 62.97 69.5 13310
    5 300 Stranded, Class 2 24.2 70.36 77.6 16650
    7 1.5 Stranded, Class 2 2.9 12.35 13.8 258
    7 2.5 Stranded, Class 2 3.31 13.7 15.2 341
    10 1.5 Stranded, Class 2 2.9 15.4 17.0 360
    10 2.5 Stranded, Class 2 3.31 17.17 18.9 479
    12 1.5 Stranded, Class 2 2.9 15.9 17.6 431
    12 2.5 Stranded, Class 2 3.31 17.65 19.5 581
    14 1.5 Stranded, Class 2 2.9 17.17 18.9 507
    14 2.5 Stranded, Class 2 3.31 19.11 21.1 683
    19 1.5 Stranded, Class 2 2.9 18.82 20.8 633
    19 2.5 Stranded, Class 2 3.31 21.05 23.2 863
    24 1.5 Stranded, Class 2 2.9 21.73 24.0 815
    24 2.5 Stranded, Class 2 3.31 24.35 26.9 1115
    27 1.5 Stranded, Class 2 2.9 22.12 24.4 872
    27 2.5 Stranded, Class 2 3.31 24.83 27.4 1201
    30 1.5 Stranded, Class 2 2.9 22.89 25.2 946
    30 2.5 Stranded, Class 2 3.31 25.7 28.4 1306
    37 1.5 Stranded, Class 2 2.9 24.64 27.2 1118
    37 2.5 Stranded, Class 2 3.31 27.64 30.5 1550
