    FR Multipair Unscreened Cables - FR Belden Equivalent 8471

    Application

    These fire resistant cables are used as high-conductivity copper speaker cables.

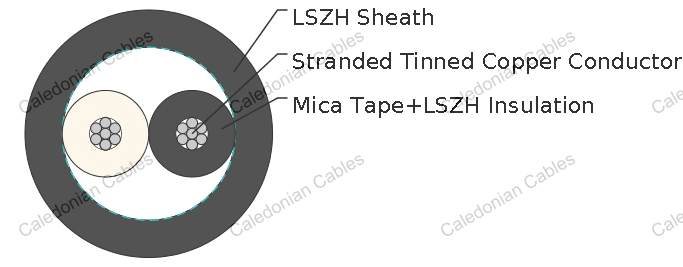

    Construction

    Conductor : Tinned copper wire.

    Insulation : Mica tape+LSZH.

    Sheath : LSZH.

    Insulation Colour : Black, White.

    Fire Performance

    Circuit Integrity IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)
    System circuit integrity DIN 4102-12, E30 depending on lay system
    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20- 22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454

    Note: Asterisk * denotes superseded standard.

    Electrical & Mechanical Characteristics

    AWG 16
    Conductor Construction 19x0.287
    UL Style 2598
    Maximum Conductor Resistance Ω/km 15.8
    Voltage Rating V 300
    Nominal Capacitance Conductor to Conductor pF/m 108.3
    Bending Radius 19xOverall Diameter
    Operating Temperature ℃ -20~80

    Dimensions

    Ordering Code No. of Pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
    BE118471FR 1 0.584 0.81 7.46
