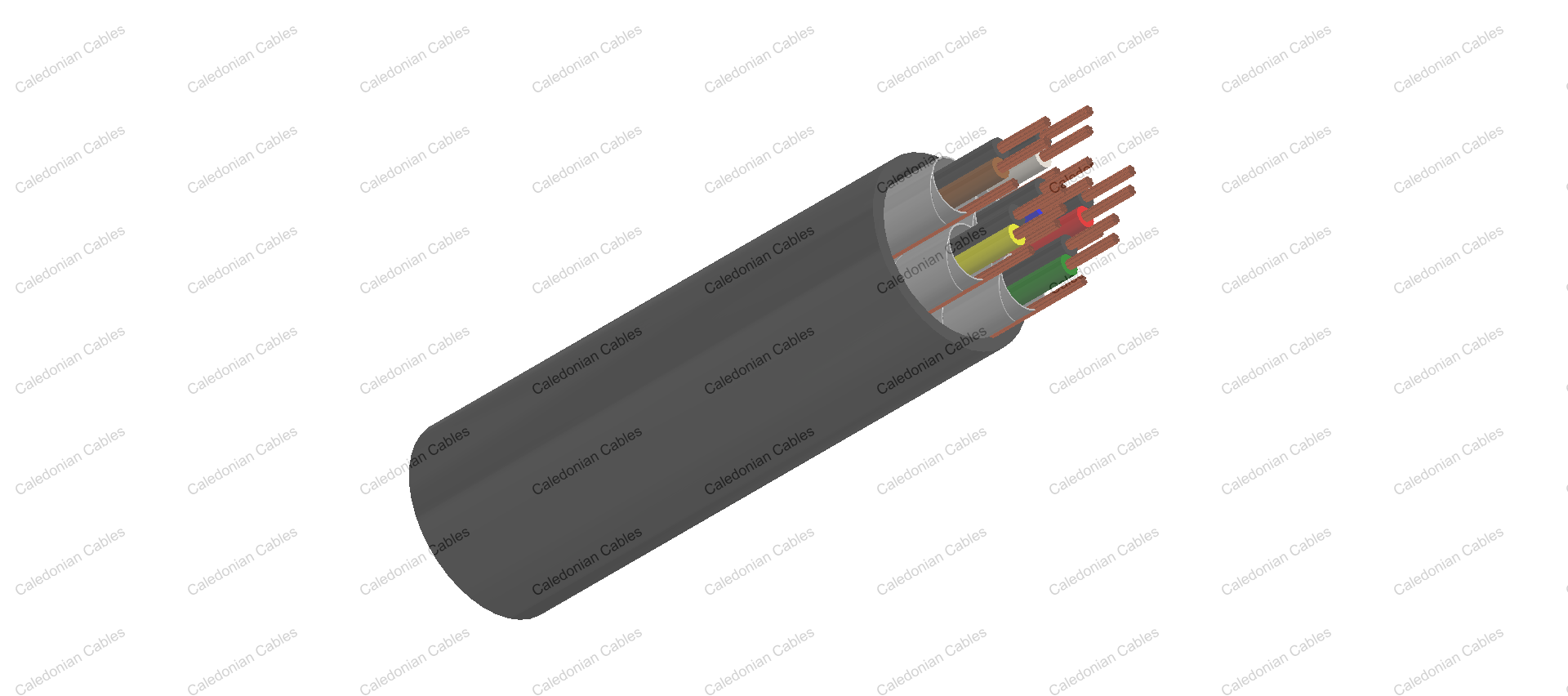

    Multipair Individually Screened Cables-Belden Equivalent 9874

    • Multipair Individually Screened Cables-Belden Equivalent 9874 BE119874H
    • Multipair Individually Screened Cables-Belden Equivalent 9874 BE119874H
    • Multipair Individually Screened Cables-Belden Equivalent 9874 BE119874V
    • Multipair Individually Screened Cables-Belden Equivalent 9874 BE119874V

    Application

    These cables have individually screened pairs laid up. Each individually screened pair has a 22AWG stranded tinned copper drain wire. These cables are used as computer cables.

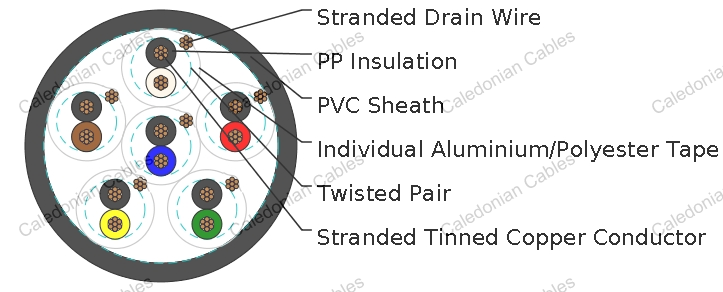

    Construction

    Conductor: Tinned copper wire.

    Insulation: PP.

    Individual Screen: Aluminium/Polyester Tape.

    Drain Wire: Tinned copper wire.

    Sheath: PVC/LSZH.

    Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown.

    Electrical & Mechanical Characteristics

    AWG   20
    CONDUCTOR CONSTRUCTION   7x0.32
    UL STYLE   2919
    MAXIMUM CONDUCTOR RESISTANCE Ω/KM 34.1
    VOLTAGE RATING V 30
    NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR PF/M 98
    NOMINAL CAPACITANCE CONDUCTOR TO SCREEN PF/M 180
    BENDING RADIUS   10xOverall Diameter
    OPERATING TEMPERATURE -20~80

    Dimensions

    ORDERING CODE NO. OF PAIRS INSULATION THICKNESS SHEATH THICKNESS OVERALL DIAMETER
        MM MM MM
    BE119874V 6 0.33 0.81 11.3
    BE119874H 6 0.33 0.81 11.3
