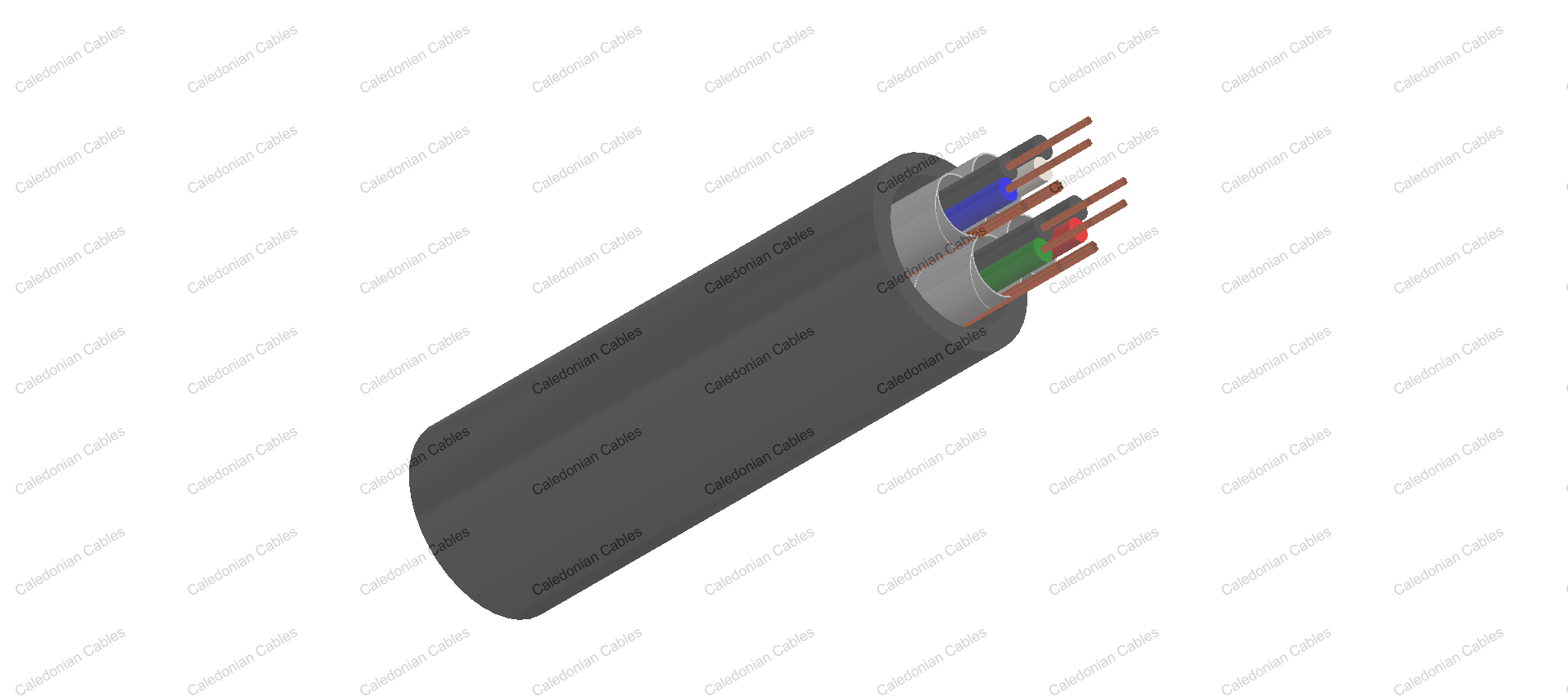

    Multipair Individually Screened Cables-Belden Equivalent 9728

    • Multipair Individually Screened Cables-Belden Equivalent 9728 BE119728H
    • Multipair Individually Screened Cables-Belden Equivalent 9728 BE119728H
    • Multipair Individually Screened Cables-Belden Equivalent 9728 BE119728V
    • Multipair Individually Screened Cables-Belden Equivalent 9728 BE119728V

    Application

    These cables have individually screened pairs laid up. Each individually screened pair has a 24AWG stranded tinned copper drain wire. These cables are suitable for RS-422 applications, used as computer cables.

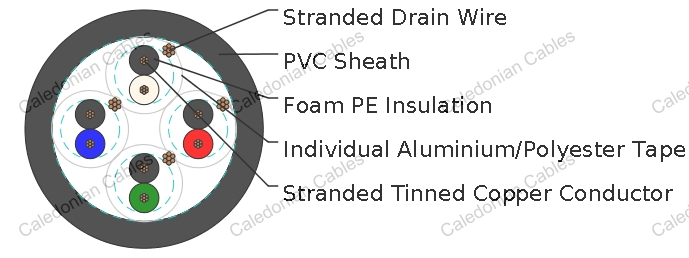

    Construction

    Conductor: Tinned copper wire.

    Insulation: FoamPE.

    Individual Screen: Aluminium/Polyester Tape.

    Drain Wire: Tinned copper wire.

    Sheath: PVC/LSZH.

    Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue.

    Electrical & Mechanical Characteristics

    AWG   24
    CONDUCTOR CONSTRUCTION   7x0.2
    UL STYLE   2493
    MAXIMUM CONDUCTOR RESISTANCE Ω/KM 85
    VOLTAGE RATING V 300
    NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR PF/M 41
    NOMINAL CAPACITANCE CONDUCTOR TO SCREEN PF/M 76
    BENDING RADIUS   10xOverall Diameter
    OPERATING TEMPERATURE -20~60

    Dimensions

    ORDERING CODE NO. OF PAIRS INSULATION THICKNESS SHEATH THICKNESS OVERALL DIAMETER
        MM MM MM
    BE119728V 4 0.47 1.22 9.2
    BE119728H 4 0.47 1.22 9.2
