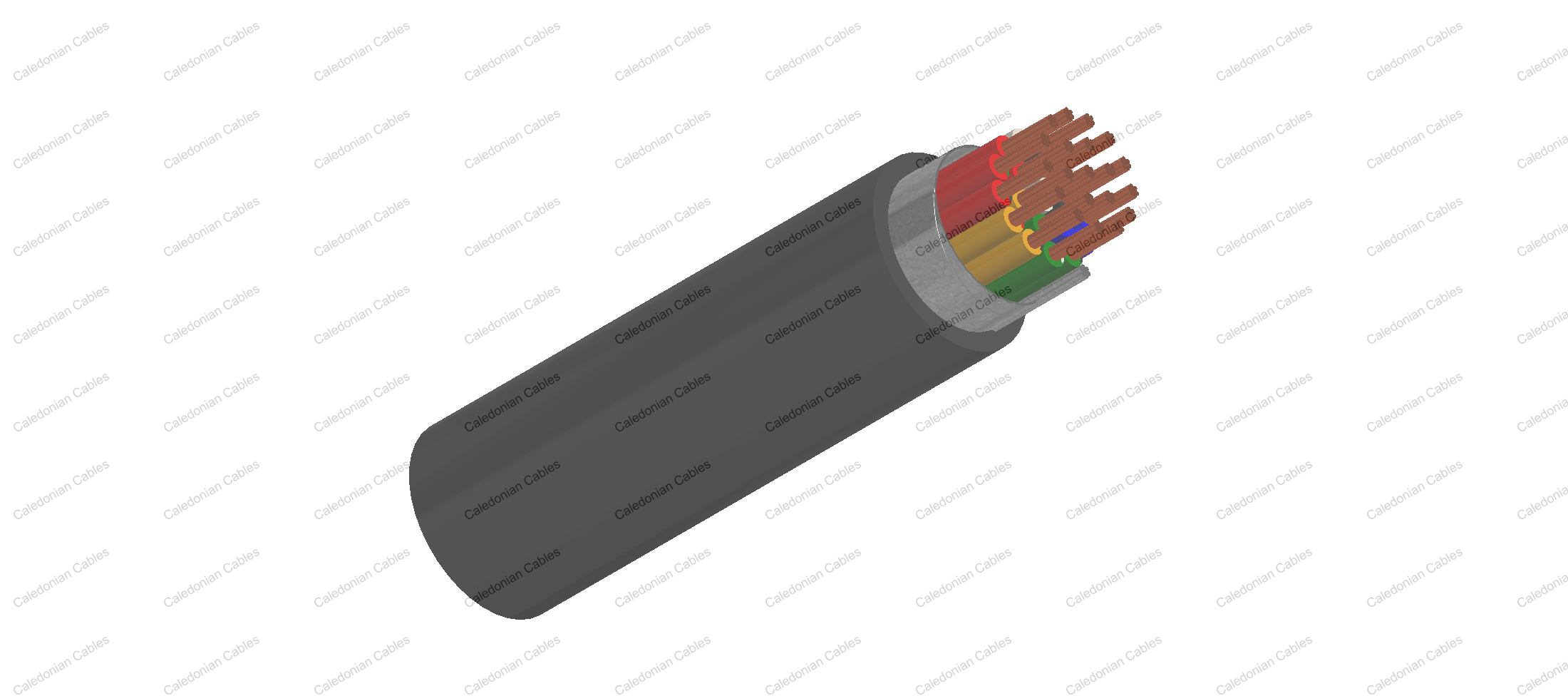

    Multicore Overall Screened Cables-Belden Equivalent 9542

    Application

    These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

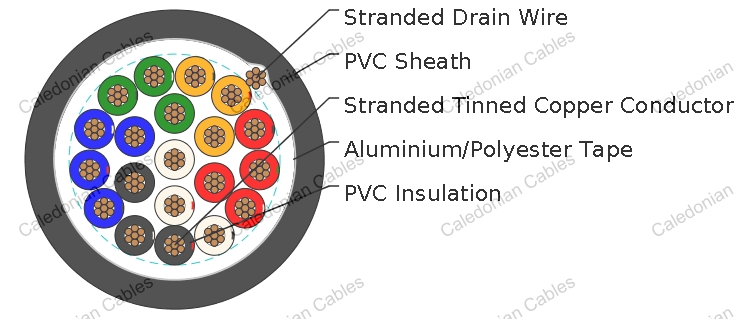

    Construction

    Conductor : Tinned copper wire.

    Insulation : PVC.

    Overall Screen : Aluminium/Polyester Tape.

    Drain Wire : Stranded Tinned Copper, 7x0.20.

    Sheath : PVC (V type)/LSZH (H type).

    Insulation Colour : Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/ Black, Orange/Black, Blue/Black, Black/White, Red/White, Green/White, Blue/White, Black/Red, White/Red, Orange/Red, Blue/Red, Red/Green.

    Electrical & Mechanical Characteristics

    AWG   24
    CONDUCTOR CONSTRUCTION   7x0.20
    UL STYLE   2464
    MAXIMUM CONDUCTOR RESISTANCE Ω/KM 85
    VOLTAGE RATING V 300
    NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR PF/M 98
    NOMINAL CAPACITANCE CONDUCTOR TO SCREEN PF/M 180
    BENDING RADIUS   10xOverall Diameter
    OPERATING TEMPERATURE -30~80

    Dimensions

    ORDERING CODE NO. OF CORES INSULATION THICKNESS SHEATH THICKNESS OVERALL DIAMETER
        MM MM MM
    BE119542V 20 0.25 0.81 8.0
    BE119542H 20 0.25 0.81 8.0
