    Multipair Overall Screened Cables-Belden Equivalent 9508

    Application

    These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

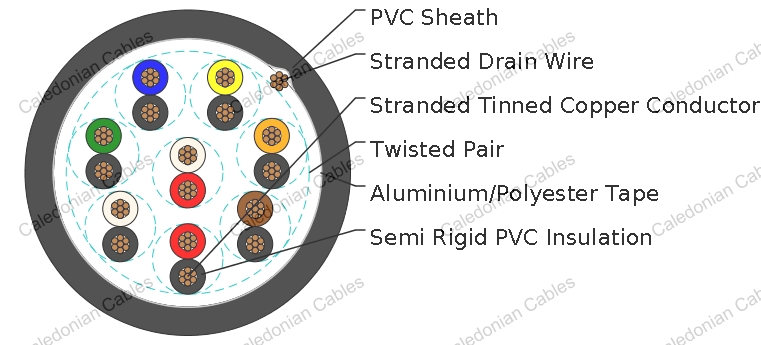

    Construction

    Conductor: Tinned copper wire. Insulation: Semi-Rigid PVC. Overall Screen: Aluminium/Polyester tape. Drain Wire: Tinned copper wire. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/ Brown, Black/Orange, Red/White.

    Electrical & Mechanical Characteristics

    AWG   24
    CONDUCTOR CONSTRUCTION   7x0.2
    UL STYLE   2464
    MAXIMUM CONDUCTOR RESISTANCE Ω/KM 85
    VOLTAGE RATING V 300
    NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR PF/M 98
    NOMINAL CAPACITANCE CONDUCTOR TO SCREEN PF/M 164
    BENDING RADIUS   10xOverall Diameter
    OPERATING TEMPERATURE -30~80

    Dimensions

    ORDERING CODE NO. OF CORES INSULATION THICKNESS SHEATH THICKNESS OVERALL DIAMETER
        MM MM MM
    BE119508V 8 0.25 0.89 8.2
    BE119508H 8 0.25 0.89 8.2
