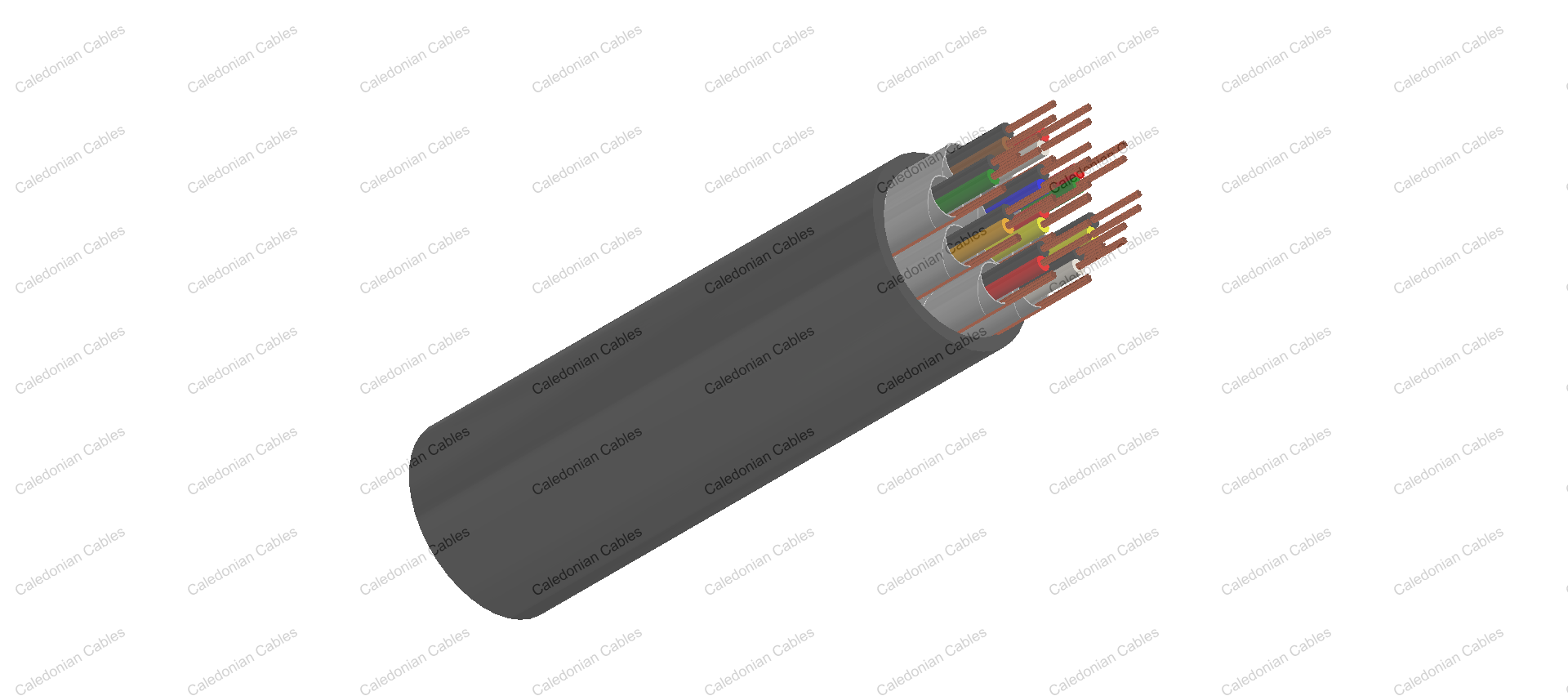

    Multipair Individually Screened Cables-Belden Equivalent 8765

    • Multipair Individually Screened Cables-Belden Equivalent 8765 BE118765H
    • Multipair Individually Screened Cables-Belden Equivalent 8765 BE118765H
    • Multipair Individually Screened Cables-Belden Equivalent 8765 BE118765V
    • Multipair Individually Screened Cables-Belden Equivalent 8765 BE118765V

    Application

    These cables have individually screened pairs laid up. Each individually screened pair has a 22AWG solid tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

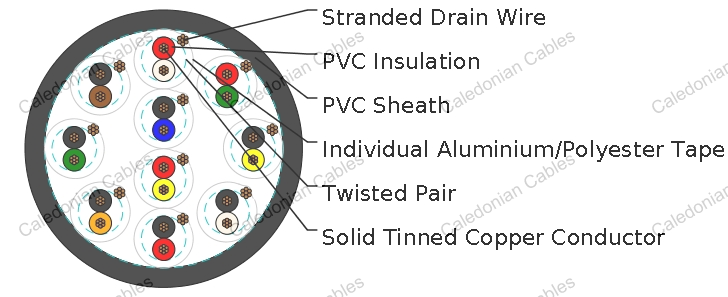

    Construction

    Conductor: Tinned copper wire.

    Insulation: PVC.

    Individual Screen: Aluminium/Polyester Tape.

    Drain Wire: Solid tinned copper wire.

    Sheath: PVC/LSZH.

    Insulation Colour: Red & Black, Green & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow.

    Electrical & Mechanical Characteristics

    AWG   22
    CONDUCTOR CONSTRUCTION   Solid
    UL STYLE   2464
    MAXIMUM CONDUCTOR RESISTANCE Ω/KM 54.8
    VOLTAGE RATING V 300
    NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR PF/M 131
    NOMINAL CAPACITANCE CONDUCTOR TO SCREEN PF/M 253
    BENDING RADIUS   10xOverall Diameter
    OPERATING TEMPERATURE -20~80

    Dimensions

    ORDERING CODE NO. OF PAIRS INSULATION THICKNESS SHEATH THICKNESS OVERALL DIAMETER
        MM MM MM
    BE118765V 11 0.33 1.02 11.9
    BE118765H 11 0.33 1.02 11.9
