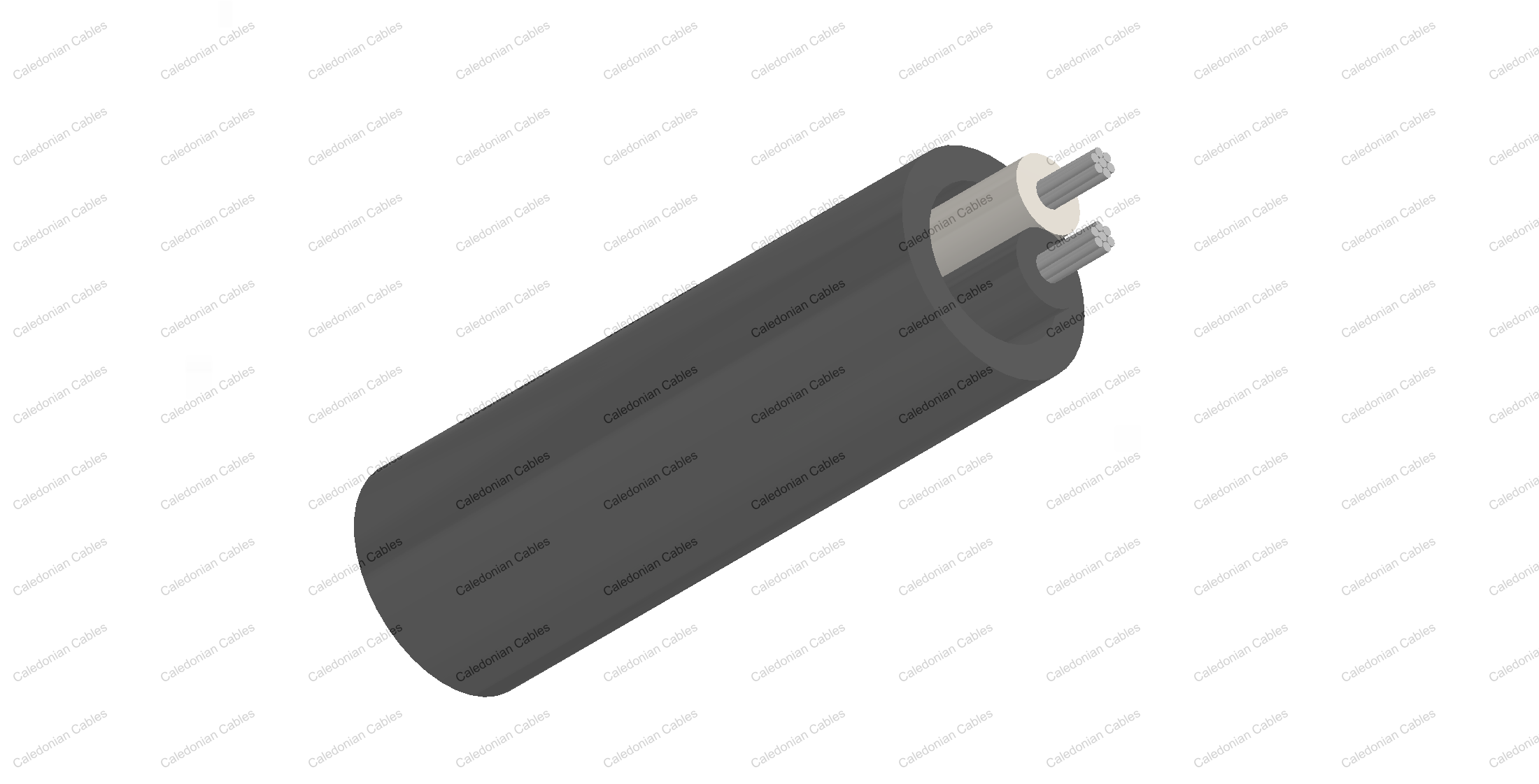

    Multipair Unscreened Cables - Belden Equivalent 8471

    Application

    These cables are used as high-conductivity copper speaker cables.

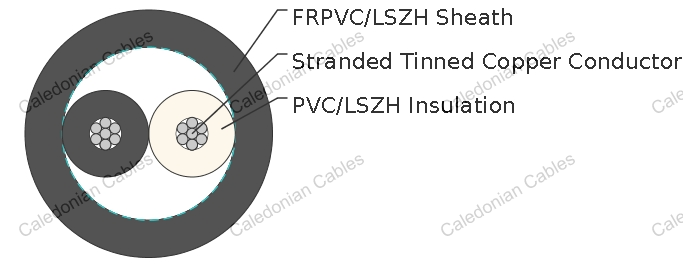

    Construction

    Conductor : Tinned copper wire.

    Insulation : PVC/LSZH.

    Sheath : FRPVC (V type)/LSZH (H type).

    Insulation Colour : Black, White.

    Electrical & Mechanical Characteristics

    AWG 16
    Conductor Construction 19x0.287
    UL Style 2598
    Maximum Conductor Resistance Ω/km 14.73
    Voltage Rating V 300
    Nominal Capacitance Conductor to Conductor pF/m 108.3
    Bending Radius 19xOverall Diameter
    Operating Temperature -20~80

    Dimensions

    Ordering Code No. of Pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
    BE118471V 1 0.584 0.81 6.96
    BE118471H 1 0.584 0.81 6.96
