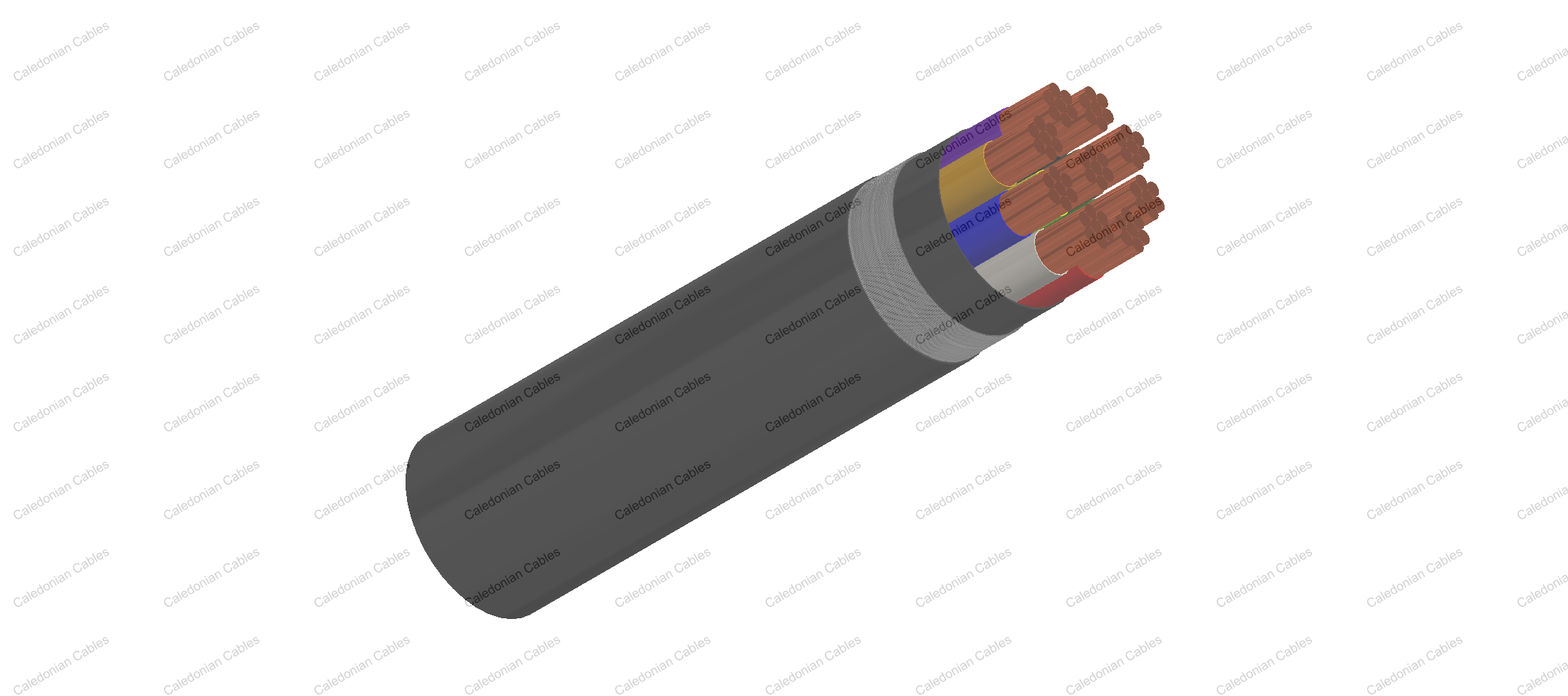

    Multicore Unscreened Armoured Cables-Belden Equivalent 28538

    Application

    These multicore unscreened armoured cables are Type MC Metal Clad cables.

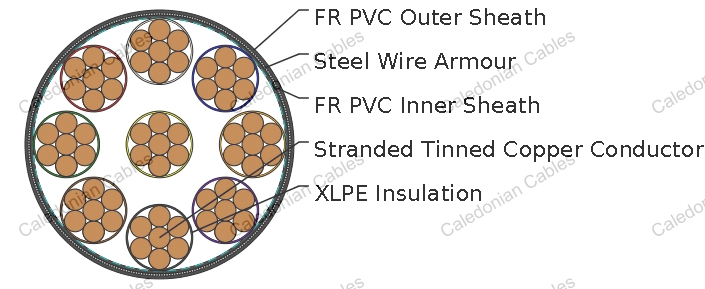

    Construction

    Conductor: Bare copper wire.

    Insulation: XLPE.

    Inner Sheath: FR PVC.

    Armour: Steel wire armour

    Outer Sheath: FR PVC

    Insulation Colour: Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple. Other colours are available upon your request.

    Electrical & Mechanical Characteristics

    AWG   12
    CONDUCTOR CONSTRUCTION   7x20
    NOMINAL CONDUCTOR DC RESISTANCE @20℃ Ω/KM 5
    VOLTAGE RATING V 600
    BENDING RADIUS   13xOverall Diameter
    OPERATING TEMPERATURE -40~90

    Dimensions

    ORDERING CODE NO. OF PAIRS INSULATION THICKNESS SHEATH THICKNESS OVERALL DIAMETER
        MM MM MM
    BE1128538V SWA 9 0.8 1.7 24.82
