SXL

Application and Description

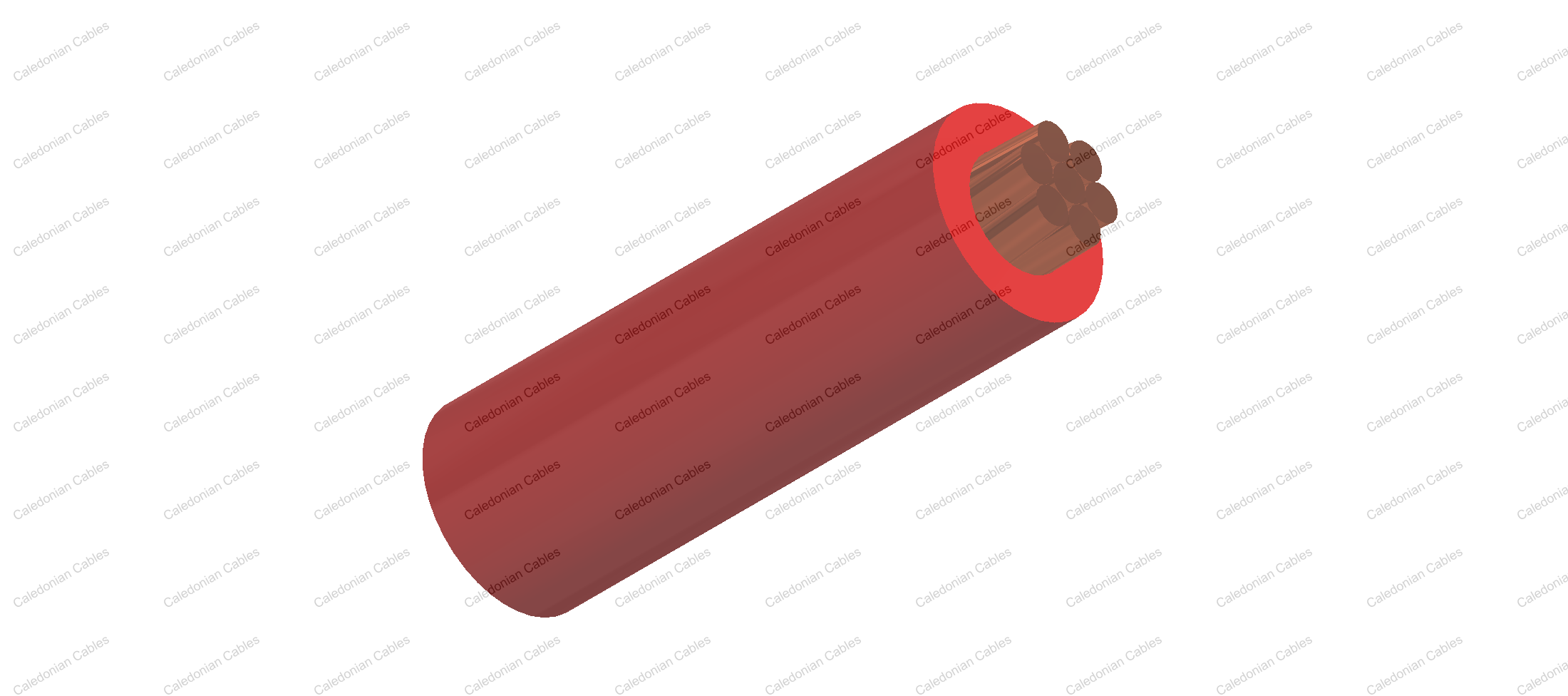

This XLPE insulated single-core cable is used in automotive applications where higher heat resistance is required.

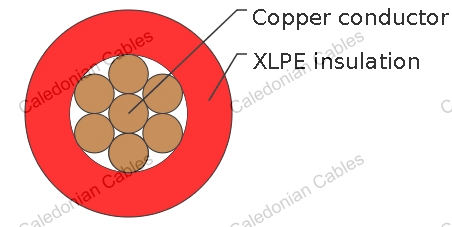

Construction

Conductor: Soft-annealed copper according to ASTM B3
Insulation: Polyethylene crosslinked (XLPE)
Standard Compliance: SAE J1128

Technical Parameters

Operating temperature:–40 °C to +125 °C

Dimensions and Weight

	Conductor Construction			Insulation		Cable
Size	Nominal cross- section	No. and Dia. of Wires	Diameter max.	Thickness Wall min.	Thickness Wall nom.	Overall Diameter max.	Weight Approx.
AWG	mm2	No./mm	mm	mm	mm	mm	kg/km
20	1 x 0.50	7\0.32	0.97	0.52	0.74	2.80	11
18	1 x 0.80	19\0.23	1.17	0.53	0.76	3.00	15
16	1 x 1.00	19\0.28	1.45	0.57	0.81	3.40	20
14	1 x 2.00	19\0.36	1.80	0.62	0.89	3.90	29
12	1 x 3.00	19\0.45	2.29	0.66	0.94	4.60	43
10	1 x 5.00	19\0.57	2.87	0.73	1.04	5.30	64

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
