    SGX

    • SGX American Standard Automotive Cable

    Application and Description

    This XLPO insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

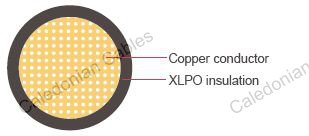

    Construction

    • Conductor: Soft-annealed copper according to ASTM B
    • Insulation: XLPO(Cross-Linked Polyolefin)
    • Standard Compliance: SAE J1127

    Special properties:

    Flame retardant
    Highly resistant against acids,lyes,petrol and diesel

    Technical Parameters

    Operating temperature:–40 °C to +125 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Size Nominal cross- section No. and Dia. of Wires Diameter of
    Conductor
    max.
    Nominal
    thickness
    Overall
    Diameter
    max.
    Weight
    Approx.
    AWG mm2 No./mm mm mm mm kg/km
    6 1x13 133/0.36 4.83 1.52 8.6 166
    4 1x19 133/0.46 6.09 1.65 10.5 257
    2 1x32 133/0.57 7.67 1.65 12.00 373
    1 1x40 259/0.46 8.49 1.65 13.00 453
    1/0 1x50 1026/0.26 9.47 1.65 14.50 545
    2/0 1x62 1254/0.26 10.47 1.65 16.00 653
    3/0 1x81 1615/0.26 11.98 1.98 18.50 847
    4/0 1x103 2052/0.26 13.40 1.98 20.00 1052

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
