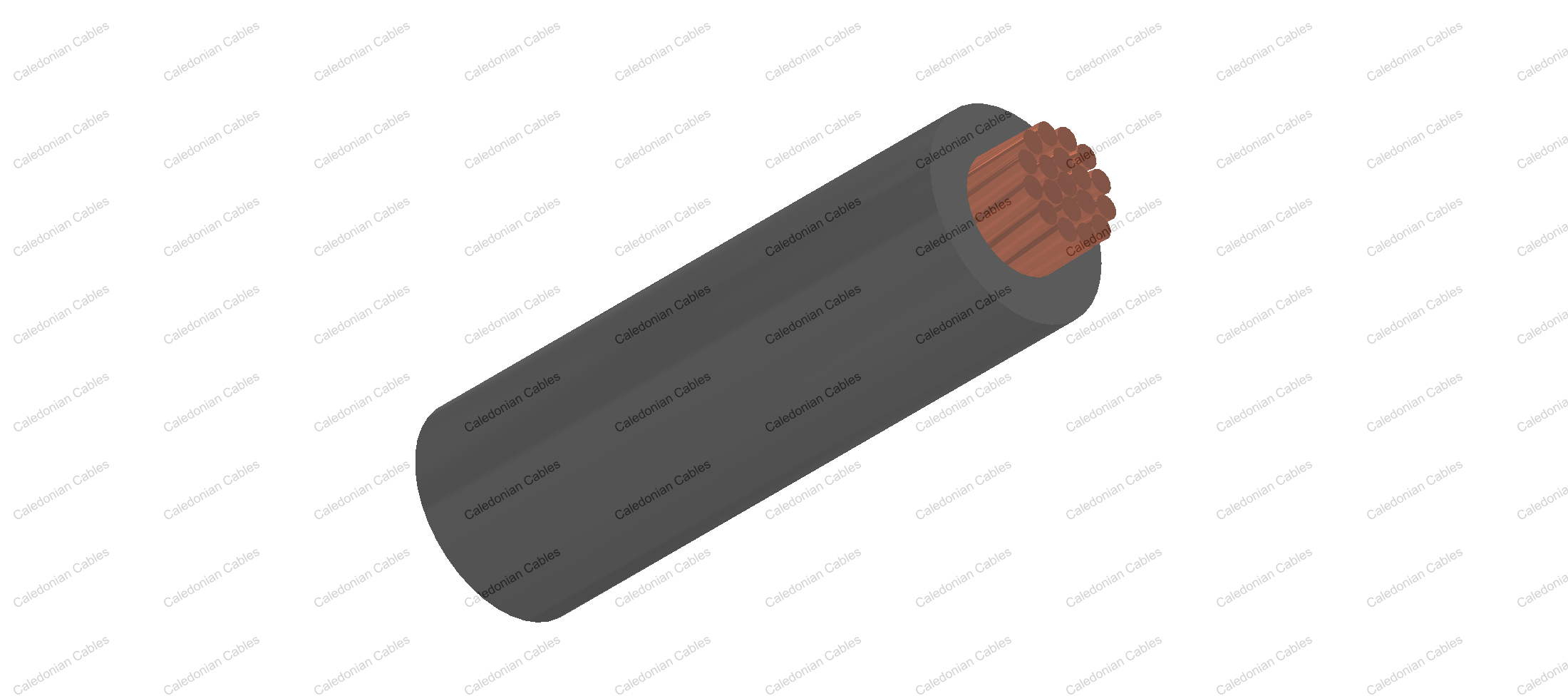

    HFSSF-T3

    • HFSSF-T3,Japanese Standard, Automotive Cable

    Application and Description

    This halogen free compound insulated single-core cable is used in low voltage circuits in automobiles(Vehicles).

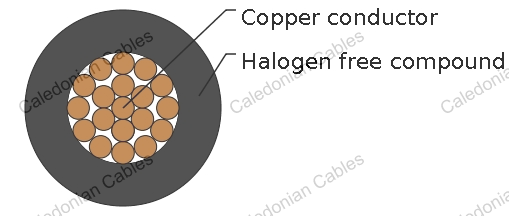

    Construction

    • Conductor: Annealed standed copper
    • Insulation: Halogen free compound
    • Standard Compliance: ES SPEC

    Technical Parameters

    Operating temperature:–40°C to +135°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x0.30 19/0.16 0.8 48.8 0.3 1.4 1.5 5.0
    1x0.50 19/0.19 1.0 34.6 0.3 1.6 1.7 6.9
    1x0.75 19/0.23 1.2 23.6 0.3 1.8 1.9 10.0
    1x1.25 37/0.21 1.5 14.6 0.3 2.1 2.2 14.3
    1x2.00 37/0.26 1.8 9.5 0.4 2.6 2.7 22.2

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
