    HDT

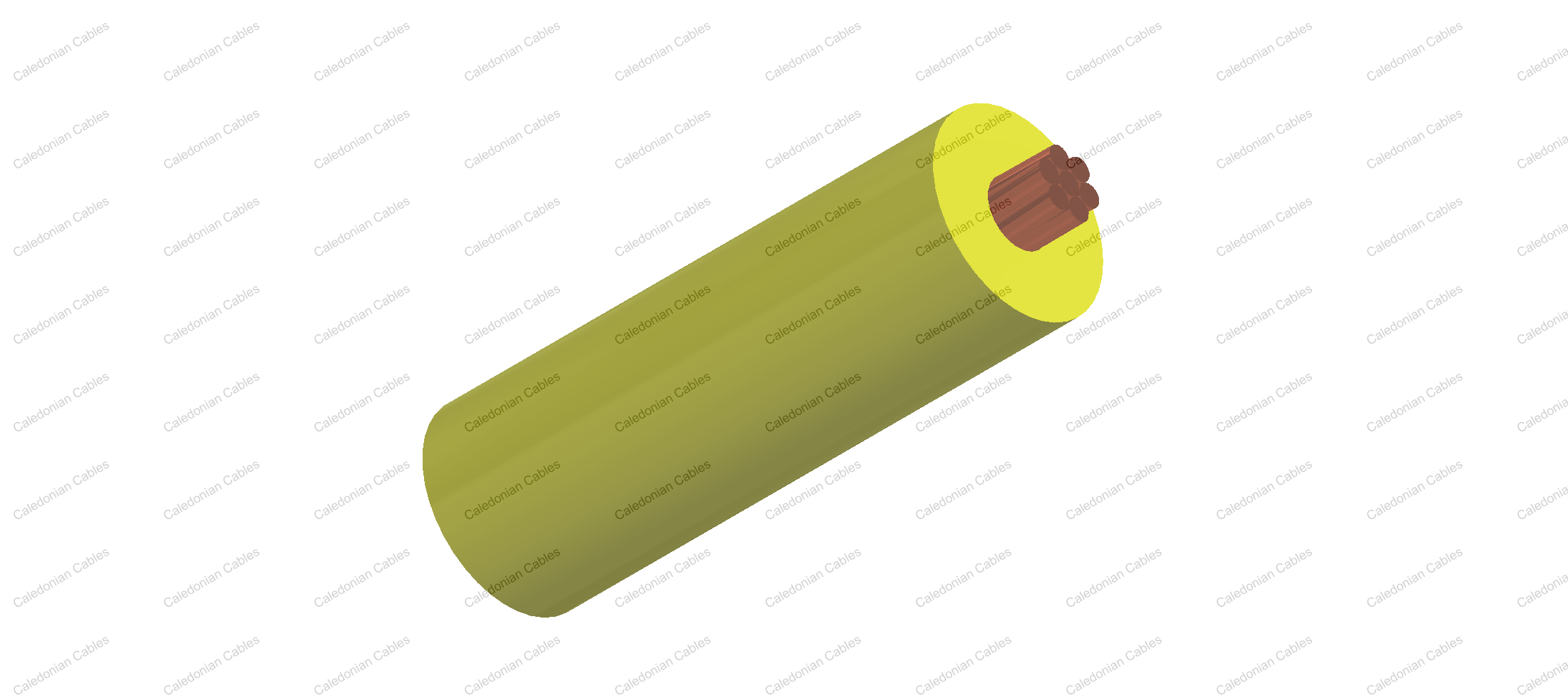

    • HDT American Standard Automotive Cable

    Application and Description

    This PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

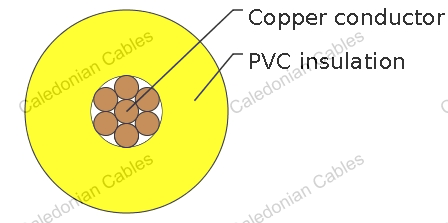

    Construction

    • Conductor: Soft-annealed copper according to ASTM B3
    • Insulation: PVC
    • Standard Compliance: SAE J1128

    Technical Parameters

    Operating temperature:–40 °C to +85 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Size Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    max.
    Weight
    Approx.
    AWG mm2 No./mm mm mm mm kg/km
    20 1 x 0.50 7/0.31 1.00 0.91 2.80 14
    18 1 x 0.80 16/0.26 1.50 0.94 3.00 20
    16 1 x 1.00 19/0.29 1.50 1.02 3.50 25
    14 1 x 2.00 19/0.36 1.80 1.04 3.90 33
    12 1 x 3.00 19/0.45 2.30 1.17 4.60 49
    10 1 x 5.00 19/0.57 3.00 1.17 5.30 71
    8 1 x 8.00 49/0.45 3.70 1.40 6.50 98

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
