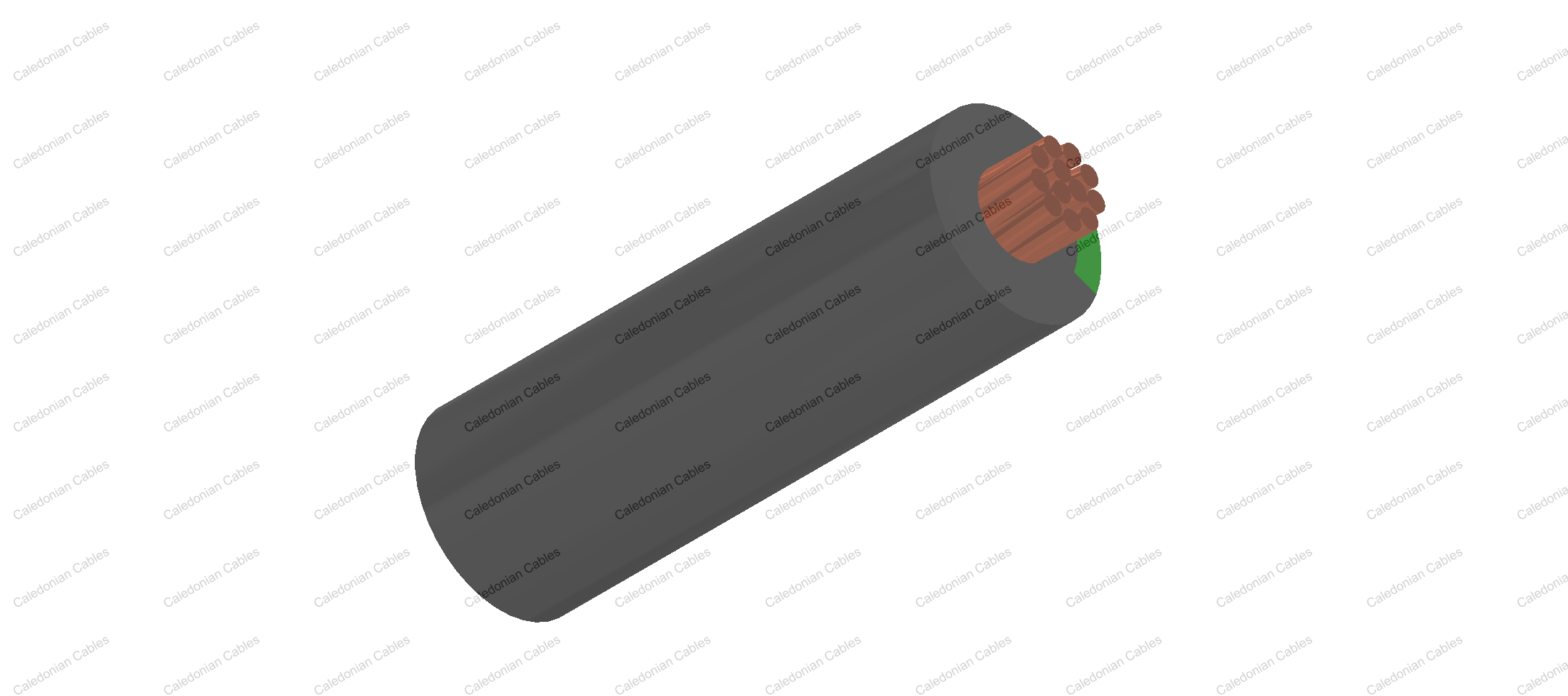

    HAEXF

    Japanese Standard,Automotive Cable

    • HAEXF,Japanese Standard,Automotive Cable

    Application and Description

    This XLPE insulated single-core cable is used in low-tension electric circults for automobiles; especially used for circults requiring heat resistance and cold resistance.

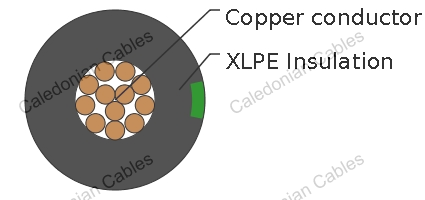

    Construction

    • Conductor: Tinned stranded copper
    • Insulation: XLPE
    • Standard Compliance: JASO D608

    Technical Parameters

    Operating temperature:–40 °C to +150°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x0.30 12/0.18 0.8 61.1 0.5 1.8 1.9 12
    1x0.50 20/0.18 1.0 36.7 0.5 2.0 2.2 16
    1x0.75 30/0.18 1.2 24.4 0.5 2.2 2.4 21
    1x0.85 34/0.18 1.2 21.6 0.5 2.2 2.4 23
    1x1.25 50/0.18 1.5 14.7 0.6 2.7 2.9 30
    1x2.00 79/0.18 1.9 10.1 0.6 3.1 3.4 39
    1x2.50 50/0.25 2.1 7.9 0.6 3.4 3.7 44

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
