    GXL

    • GXL American Standard Automotive Cable

    Application and Description

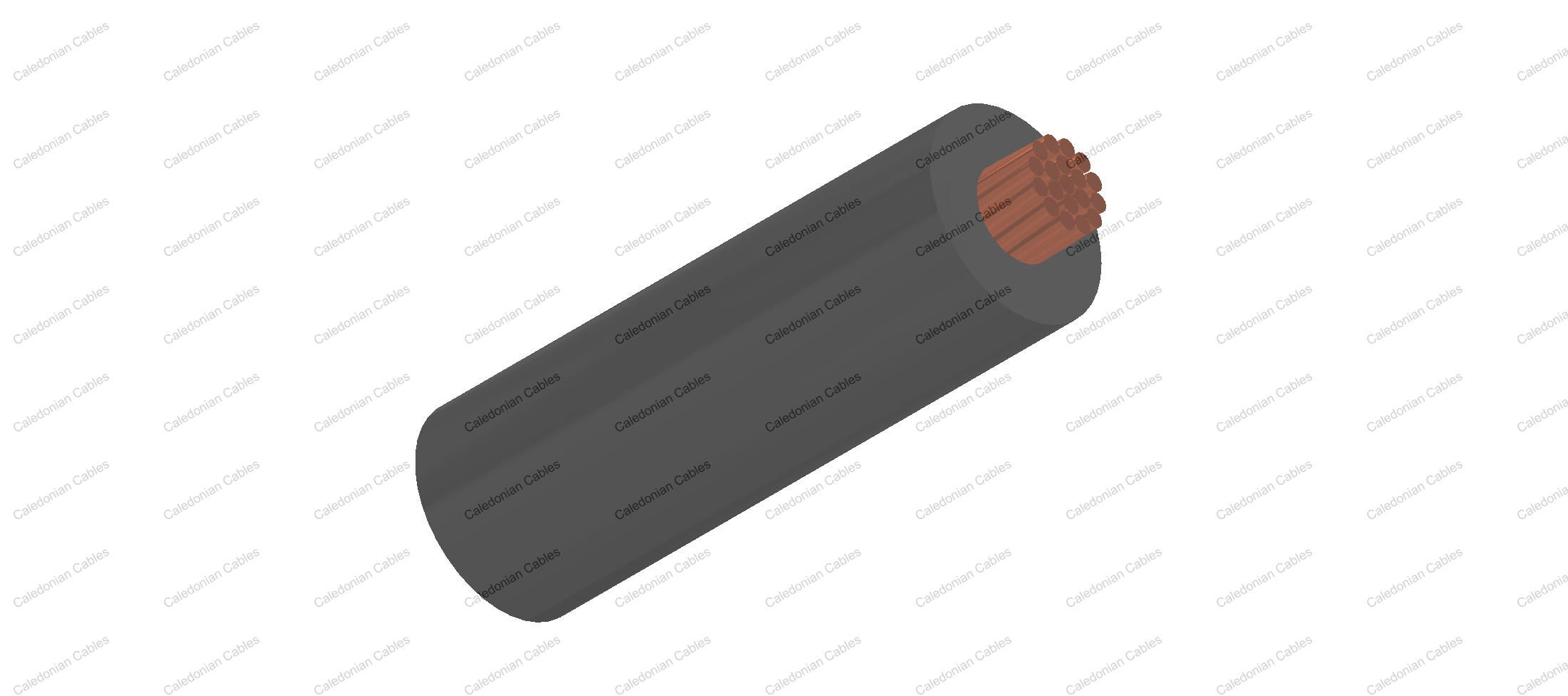

    This XLPE insulated single-core cable is used in automotive applications where higher heat resistance and small diameter is required.

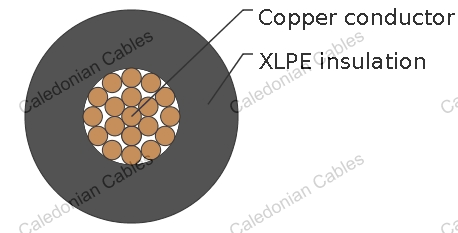

    Construction

    • Conductor: Soft-annealed copper according to ASTM B3
    • Insulation: Polyethylene crosslinked (XLPE)
    • Standard Compliance: SAE J1128

    Technical Parameters

    Operating temperature:–40 °C to +125 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Size Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Thickness
    Wall
    min.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    max.
    Weight
    Approx.
    AWG mm2 No./mm mm mm mm mm kg/km
    20 1 x 0.50 19/0.20 0.97 0.41 0.58 2.40 9
    18 1 x 0.80 19/0.23 1.17 0.41 0.58 2.50 12
    18 1 x 0.80 16/0.25 1.17 0.41 0.58 2.50 12
    16 1 x 1.00 19/0.24 1.45 0.41 0.58 2.90 17
    14 1 x 2.00 19/0.36 1.80 0.41 0.58 3.20 25
    12 1 x 3.00 19/0.45 2.29 0.46 0.66 3.80 38
    10 1 x 5.00 19/0.57 2.87 0.56 0.79 4.70 58

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
