    FLYZ

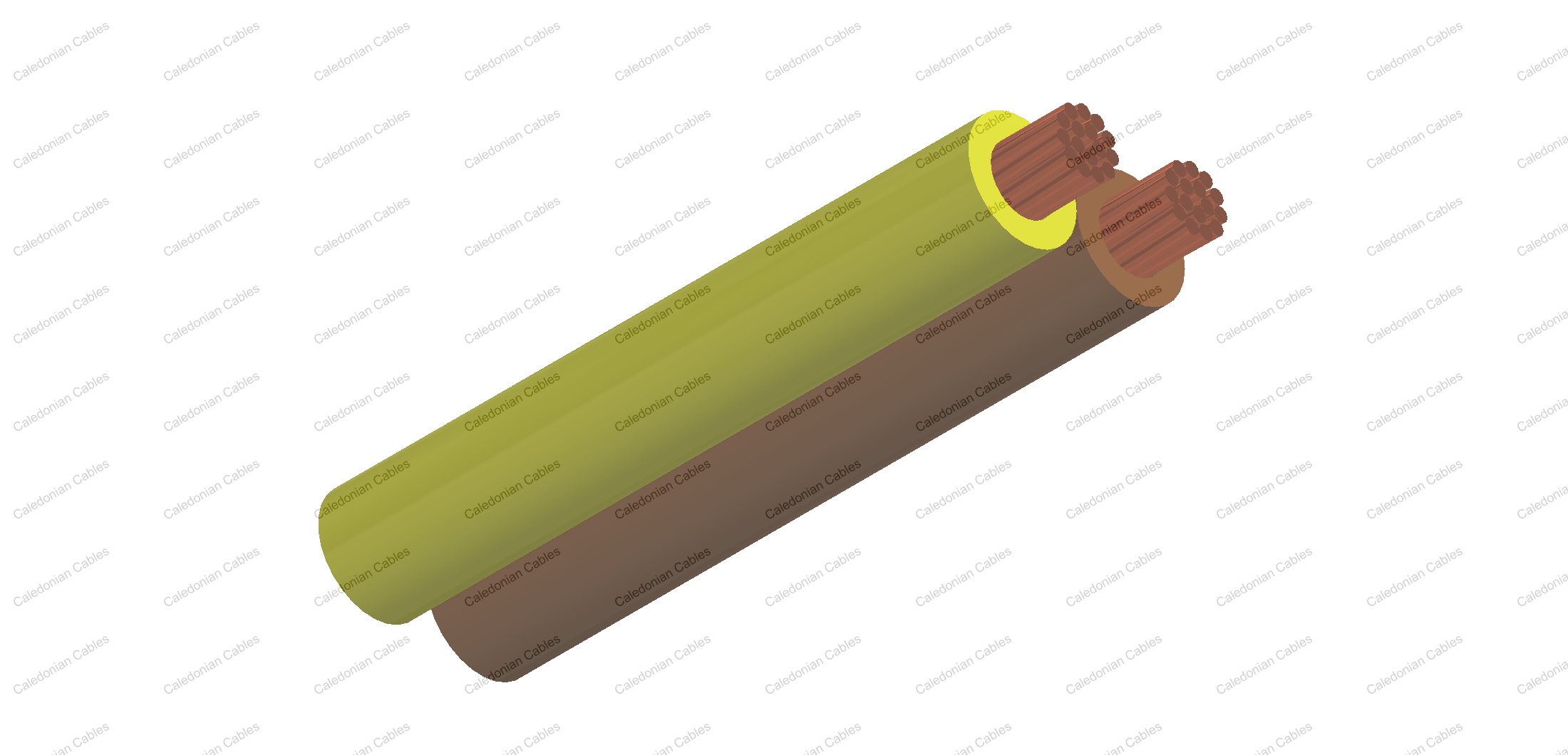

    • FLYZ - Automotive Cable

    Application and Description

    This PVC insulated multi-cores cable is used in internal wiring in automobile where high flexibility, thermo and mechanical strength are required.

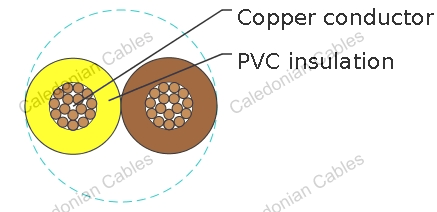

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN13602
    • Insulation: Plasticized (PVC)
    • Standard: ISO 6722 Class B

    Technical Parameters

    Operating temperature: –40°C to +105 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Diameter
    of Core
    Diameter
    Width
    Diameter
    Height
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm mm kg/km
    2 x0.50 16 /0.21 1.00 37.10 0.50 2.10 4.40±0.20 2.10±0.15 20
    2 x0.75 24 /0.21 1.20 24.70 0.60 2.35 4.70±0.30 2.35±0.15 23
    2 x1.00 32/0.20 1.50 19.50 0.60 2.55 5.10±0.30 2.50±0.15 32
    2 x1.50 48 /0.26 1.70 12.70 0.60 2.80 5.60±0.30 2.80±0.15 39

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
