    FLYY

    • FLYY - Automotive Cable

    Application and Description

    This PVC insulated, PVC sheathed low tension multi-cores cable is used for automobiles, motorcycles and other motor vehicles.

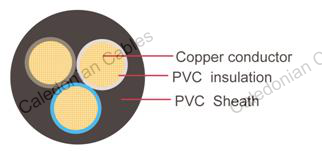

    Construction

    • Conductor: Cu-ETP1 bare or tinned according to DIN EN13602
    • Insulation: PVC
    • Sheath: PVC
    • Standard: ISO 6722 Class B

    Technical Parameters

    Operating temperature: –40°C to +105°C

    Dimensions and Weight

      Conductor Construction   Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter of Conductor
    max.
    Electrical Resistance at 20°C Bare/Tinned
    max.
    Nominal Thickness Diameter
    of Core
    Sheath
    Thickness
    Overall Diameter
    min.
    Overall Diameter
    max.
    Weight approx.
    mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
    2x 0.50 16/0.21 1.00 37.10/38.20 0.50 1.75 0.50 4.30 4.70 31
    2x 0.75 24/0.21 1.20 24.70/25.40 0.60 2.30 0.50 5.40 5.80 48
    2x 1.00 32/0.21 1.35 18.50/19.10 0.60 2.50 0.80 6.40 6.80 65
    2x 1.50 30/0.26 1.70 12.70/13.00 0.60 2.75 0.90 7.00 7.50 83
    3x 0.50 16/0.21 1.00 37.10/38.20 0.50 2.10 0.60 5.80 6.20 53
    3x 0.75 24/0.21 1.20 24.70/25.40 0.60 2.30 0.60 5.70 6.30 60
    3x 1.00 32/0.21 1.35 18.50/19.10 0.60 2.50 0.90 6.90 7.50 81
    3x 1.50 30/0.26 1.70 12.70/13.00 0.60 2.65 0.70 6.90 7.50 98

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
