    FLYK

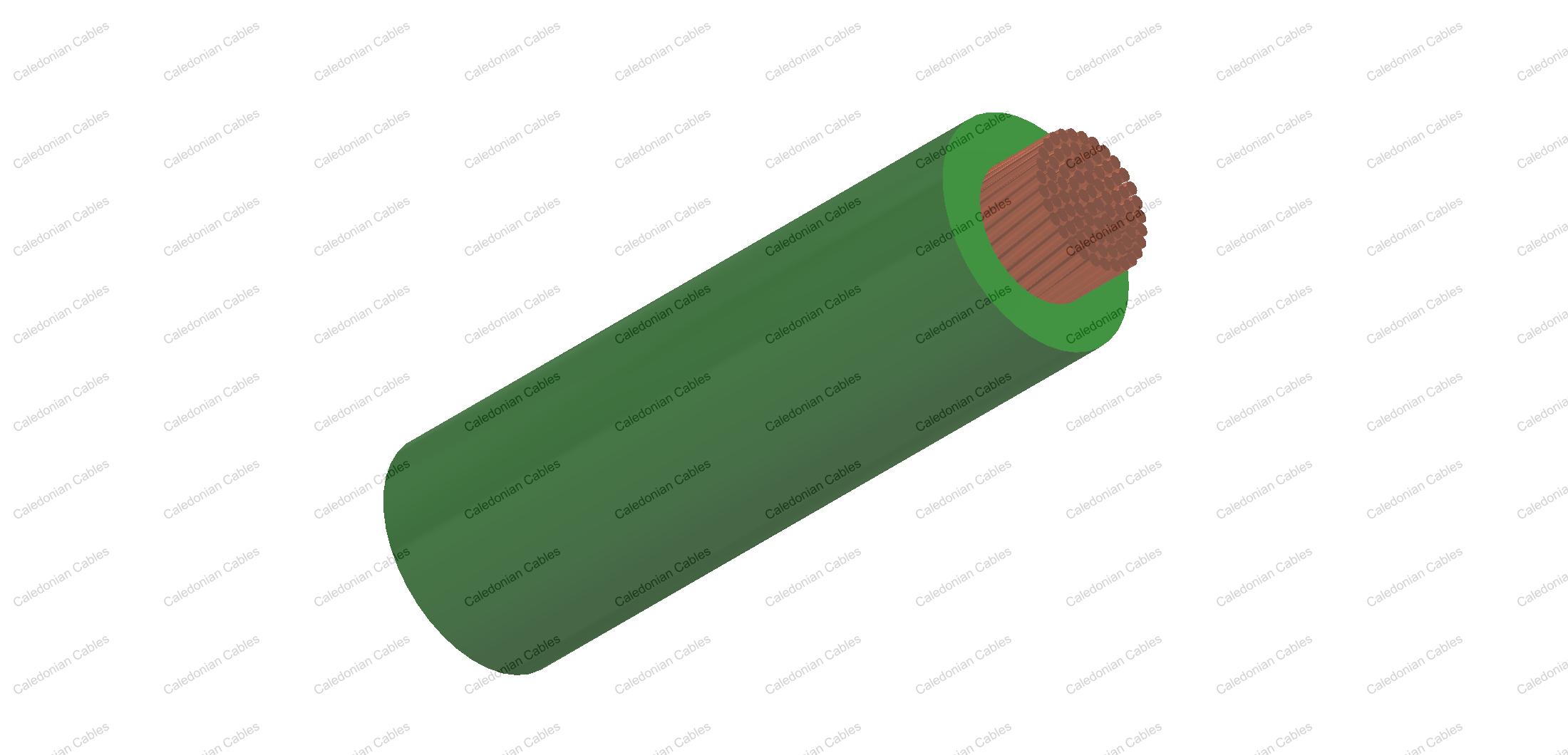

    • FLYK - Automotive Cable

    Application and Description

    This PVC insulated automotive cable is used for cars, trucks and other vehicles.

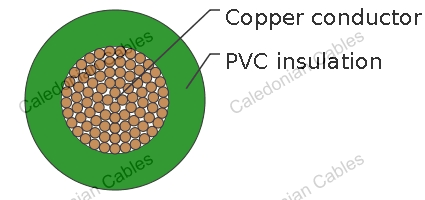

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN 13602
    • Insulation: PVC insulation(Cold resistant)
    • Standard Compliance: ISO 6722 Class B

    Special properties

    Cold bending test according to ISO 6722 at –50 °C.
    Short-term and long-term ageing according to ISO 6722, Class B.

    Technical Parameters

    Operating temperature: –50°C to +105°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal
    cross- section
    No. and Dia. of Wires Diameter
    of Conductor max.
    Electrical
    resistance at 20°C max.
    Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x0.50 28 /0.16 1.1 37.7 0.6 2.0 2.3 9
    1x0.75 42/0.16 1.3 25.1 0.6 2.2 2.5 12
    1x1.00 57/0.16 1.5 18.8 0.6 2.4 2.7 15
    1x1.50 84/0.16 1.8 12.7 0.6 2.7 3.0 20
    1x2.50 140/0.16 2.3 7.54 0.7 3.5 3.9 32
    1x4.00 196/0.16 3.3 4.71 0.8 4.5 4.9 53
    1x4.5 84/0.16 1.80 12.7 0.6 2.7 3.0 23
    1x6.00 294/0.16 4.2 3.14 0.8 5.3 6.0 76
    1x10.00 455/0.16 5.2 1.85 1.0 6.7 7.3 124
    1x16.00 490/0.21 6.7 1.16 1.0 8.2 8.8 198
    1x25.00 798/0.21 8.0 0.74 1.2 9.9 10.5 298

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
