    FLU6Y

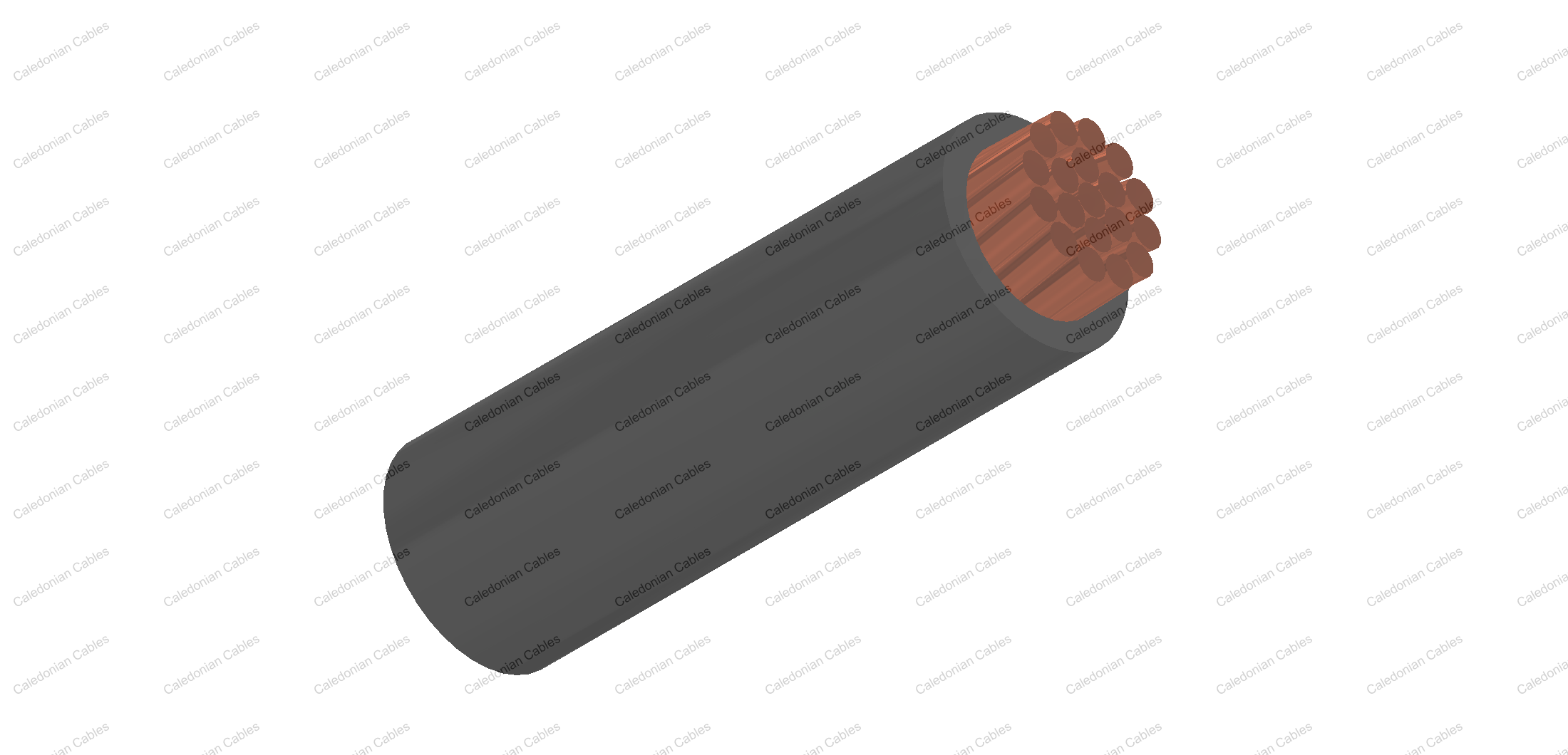

    • FLU6Y - Automotive Cable

    Application and Description

    This FEP insulated automotive cable is used for cable harnesses. Very good resistance to fuels and abrasion.

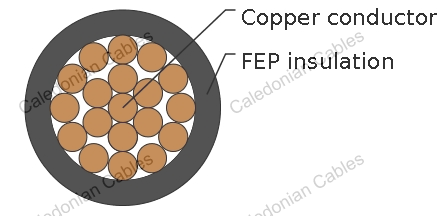

    Construction

    • Conductor: Plain,tinned Silver or Nickel plated copper
    • Insulation: FEP
    • Standard Compliance: ISO 6722 Class F

    Technical Parameters

    Operating temperature: –40°C to +200°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of ires Diameter of Conductor
    max.
    Electrical Resistance at 20°C Bare/Tinned
    max.
    Nominal Thickness Overall Diameter
    min.
    Overall Diameter
    max.
    Weight approx.
    mm2 No./mm mm mΩ/m mm   mm kg/km
    1x0.13 7/0.16 0.5 140 0.16 0.85 0.95 2.3
    1x0.14 7/0.16 0.5 140 0.16 0.85 0.95 2.3
    1x0.22 7/0.21 0.7 86.5 0.16 0.95 1.05 2.9
    1x0.35 7/0.26 0.7 55.5 0.16 1.10 1.20 4.3
    1x0.50 19/0.19 1.0 38.2 0.16 1.30 1.40 6.4
    1x0.75 19/0.23 1.2 25.4 0.16 1.50 1.60 8.8
    1x1.00 19/0.26 1.4 19.1 0.16 1.65 1.75 10.8
    1x1.50 19/0.32 1.7 13.0 0.16 1.90 2.10 15.8
    1x2.50 19/0.41 2.2 7.82 0.20 2.45 2.75 25.8

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
