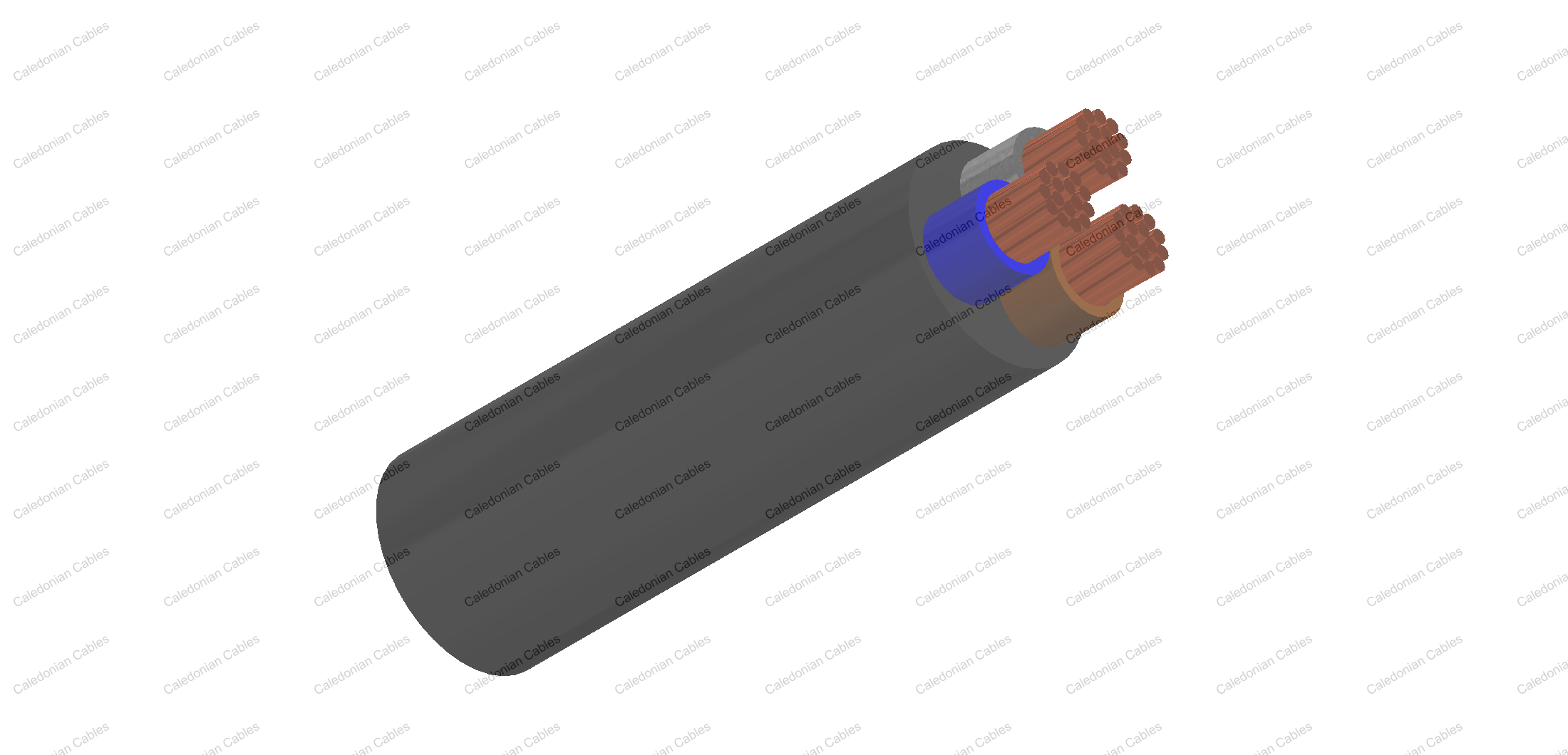

    FLRYY

    • FLRYY - Automotive Cable

    Application and Description

    This PVC insulated, PVC sheathed cable is used for low voltage electrical installations in vehicles.

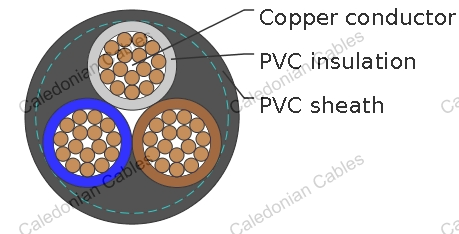

    Construction

    • Conductor: Cu-ETP1 bare or tinned according to DIN EN13602
    • Insulation: PVC
    • Sheath: PVC
    • Standard: ISO 6722 Class B

    Technical Parameters

    Operating temperature: –40°C to +105°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Diameter
    of Core
    Sheath
    Thickness
    Overall Diameter
    max.
    mm2 No./mm mΩ/m mm mm mm mm
    1x0.35 12/0.21 52.0 0.20 1.3 0.4 2.2
    2x0.35 12/0.21 52.0 0.20 1.3 0.5 3.7
    3x0.35 12/0.21 52.0 0.20 1.3 0.5 3.9
    4x0.35 12/0.21 52.0 0.20 1.3 0.5 4.3
    5x0.35 12/0.21 52.0 0.20 1.3 0.5 4.6
    7x0.35 12/0.21 52.0 0.20 1.3 0.5 5.0
    10x0.35 12/0.21 52.0 0.20 1.3 0.5 6.4
    1x0.5 16/0.21 37.1 0.22 1.3 0.6 2.5
    2x0.5 16/0.21 37.1 0.22 1.6 0.6 4.5
    3x0.5 16/0.21 37.1 0.22 1.6 0.6 4.8
    4x0.5 16/0.21 37.1 0.22 1.6 0.6 5.2
    5x0.5 16/0.21 37.1 0.22 1.6 0.6 5.6
    7x0.5 16/0.21 37.1 0.22 1.6 0.6 6.1
    10x0.5 16/0.21 37.1 0.22 1.6 0.6 7.7
    1x0.75 24/0.21 24.7 0.24 1.9 0.4 2.8
    2x0.75 24/0.21 24.7 0.24 1.9 0.6 5.1
    3x0.75 24/0.21 24.7 0.24 1.9 0.6 5.4
    4x0.75 24/0.21 24.7 0.24 1.9 0.6 5.9
    5x0.75 24/0.21 24.7 0.24 1.9 0.6 6.4
    7x0.75 24/0.21 24.7 0.24 1.9 0.6 7.0
    10x0.75 24/0.21 24.7 0.24 1.9 0.8 9.3
    1x1.0 32/0.21 18.5 0.24 2.1 0.4 3.0
    2x1.0 32/0.21 18.5 0.24 2.1 0.6 5.5
    3x1.0 32/0.21 18.5 0.24 2.1 0.6 5.8
    4x1.0 32/0.21 18.5 0.24 2.1 0.6 6.4
    5x1.0 32/0.21 18.5 0.24 2.1 0.6 7.0
    7x1.0 32/0.21 18.5 0.24 2.1 0.8 8.0
    10x1.0 32/0.21 18.5 0.24 2.1 0.8 10.1
    1x1.5 30/0.26 12.7 0.24 2.4 0.4 3.3
    2x1.5 30/0.26 12.7 0.24 2.4 0.6 6.1
    3x1.5 30/0.26 12.7 0.24 2.4 0.6 6.4
    4x1.5 30/0.26 12.7 0.24 2.4 0.6 7.1
    5x1.5 30/0.26 12.7 0.24 2.4 0.6 7.8
    7x1.5 30/0.26 12.7 0.24 2.4 0.8 8.9
    10x1.5 30/0.26 12.7 0.24 2.4 0.8 11.4
    1x2.5 50/0.26 7.6 0.28 3.0 0.4 3.9
    2x2.5 50/0.26 7.6 0.28 3.0 0.6 7.3
    3x2.5 50/0.26 7.6 0.28 3.0 0.6 7.8
    4x2.5 50/0.26 7.6 0.28 3.0 0.6 8.6
    5x2.5 50/0.26 7.6 0.28 3.0 0.8 9.8
    7x2.5 50/0.26 7.6 0.28 3.0 0.8 10.7
    10x2.5 50/0.26 7.6 0.28 3.0 0.8 13.7

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
