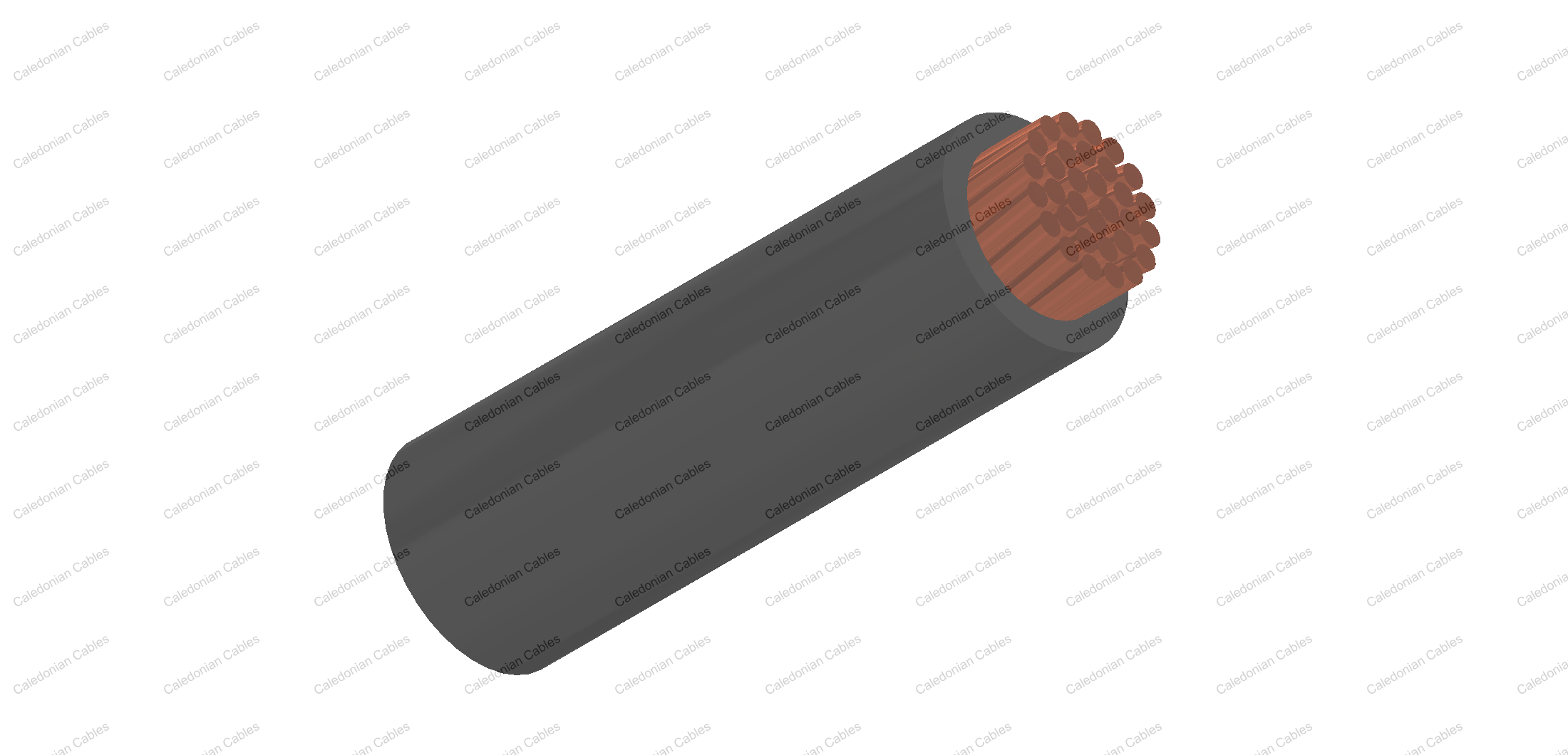

    FLRYWd

    Application and Description

    This PVC insulated single-core cable is used for vehicle constructions.

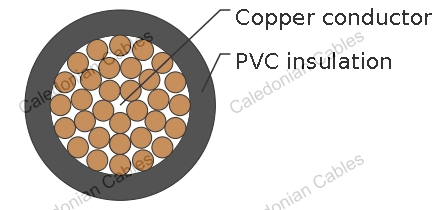

    Construction

    • Conductor: Cu-ETP1 bare or tinned according to DIN EN 13602
    • Insulation: PVC
    • Standard Compliance: ISO 6722 Class B

    Technical Parameters

    Operating temperature: –40°C to +105°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal
    cross- section
    No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at
    20°C max.
    Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
    mm2 No./mm mm mΩ/m mm   mm kg/km
    1x0.35 7/0.26 0.80 52 0.20 1.3 1.4 4.48
    1x0.50 16/0.21 1.00 37.1 0.22 1.4 1.7 6.6
    1x0.75 24/0.21 1.20 24.7 0.24 1.7 1.9 9.0
    1x1.00 32/0.21 1.35 18.5 0.24 1.9 2.1 11.0
    1x1.50 30/0.26 1.70 12.7 0.24 2.2 2.4 16.0
    1x2.00 30/0.31 1.90 9.42 0.28 2.4 2.8 22.0
    1x2.50 50/0.26 2.20 7.6 0.28 2.7 3.0 6.0
    1x3.00 45/0.31 2.40 6.15 0.32 2.9 3.4 32.5
    1x4.00 56/0.31 2.75 4.71 0.32 3.4 3.8 42.0
    1x6.00 84/0.31 3.30 3.14 0.32 4.0 4.3 61.0
    1x10.00 80/0.41 4.50 1.82 0.48 5.4 6.0 108
    1x16.00 126/0.41 6.30 1.16 0.52 7.3 7.9 170
    1x25.00 196/0.41 7.80 0.74 0.52 8.6 9.4 265

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
