    FLRYDY

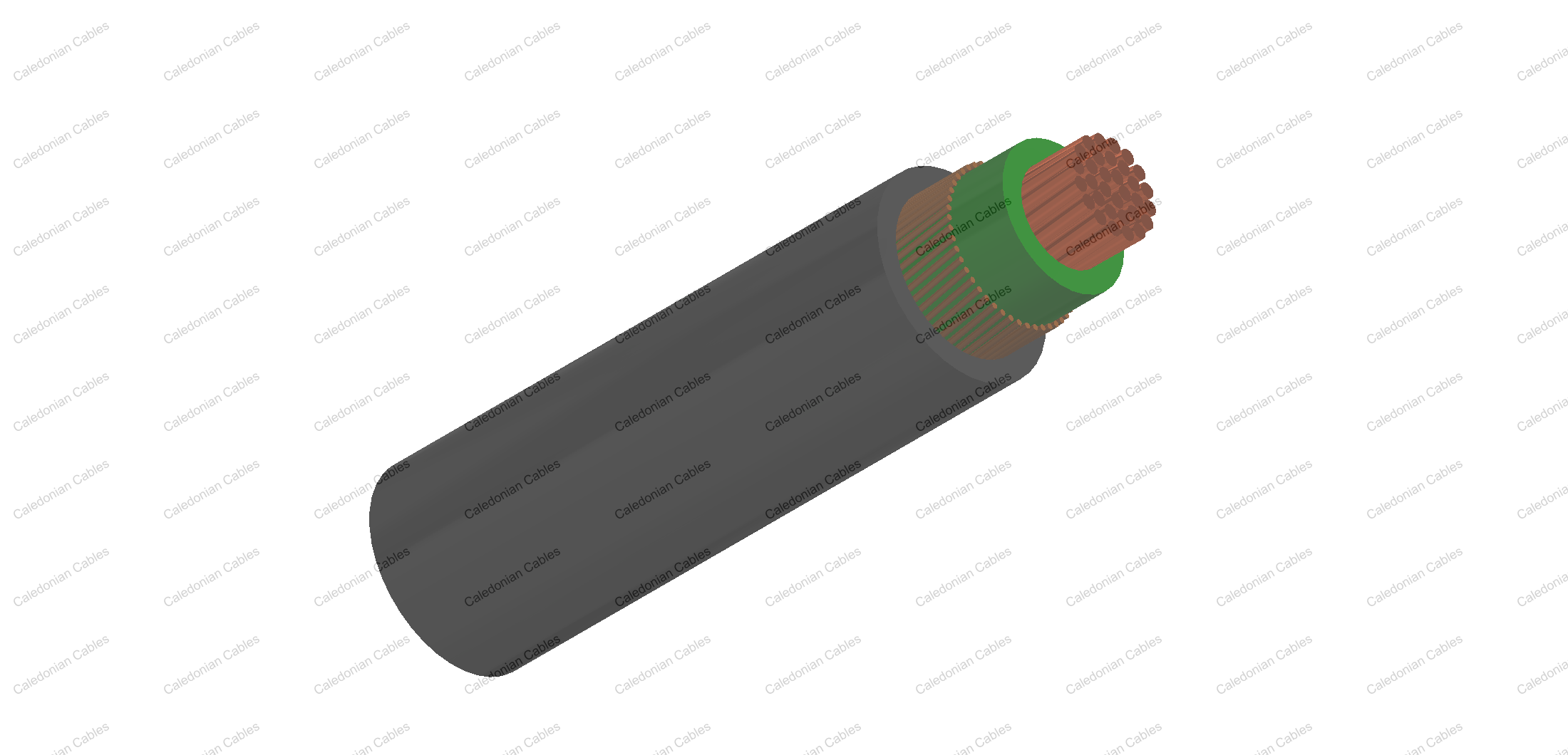

    • FLRYDY - Automotive Cable

    Application and Description

    This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

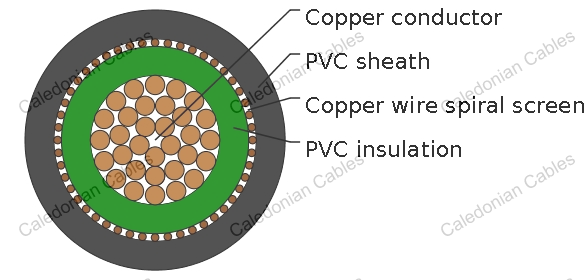

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN 13602
    • Insulation: PVC
    • Screen: Copper wire spiral shield
    • Sheath: PVC
    • Standard: ISO 6722 Class B

    Special properties:

    Flame retardant
    Flexible conductors with PVC thin wall insulation with increased mechanical strength

    Technical Parameters

    Operating temperature: –40°C to +105°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter of Conductor
    max.
    Electrical Resistance at 20°C Bare/Tinned
    max.
    Nominal Thickness Diameter
    Of Core
    Sheath
    Wall
    Thickness
    Overall Diameter
    min.
    Overall Diameter
    max.
    Weight approx.
    mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
    1x075 24/0.21 1.2 24.7 0.3 1.75 0.3 2.5 2.7 20
    1x1.00 32/0.21 1.35 18.5 0.3 1.95 0.3 2.7 2.9 23
    1x1.50 30/0.26 1.7 12.7 0.3 2.25 0.3 3.0 3.2 29

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
