    FLRYB11Y

    • FLRYB11Y - Automotive Cable

    Application and Description

    This PVC insulated ,PUR sheathed low tension multi-cores cable is used for automobiles; it has excellent abrasion resistance and better resistance to bending fatigue.

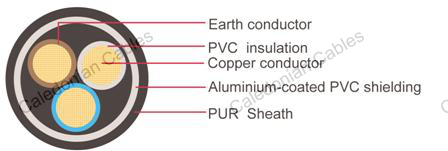

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN 13602
    • Insulation: PVC
    • Cover for the earth conductor: Conductive PVC
    • Shielding: Aluminium-coated PVC foil
    • Sheath: polyurethane (PUR)
    • Standard: ISO 6722 Class B

    Technical Parameters

    Operating temperature: –40°C to +105 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Diameter
    of Core
    Sheath
    Thickness
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
    1 x 0.35+(0.35) 7 /0.26 0.80 52.00 0.25 1.25 0.60 3.90 4.30 21
    2 x0.35+(0.35) 7/0.26 0.80 52.00 0.25 1.25 0.60 4.10 4.50 24
    3 x0.35+(0.35) 7/0.26 0.80 52.00 0.25 1.25 0.60 4.40 4.80 30
    4 x0.35+(0.35) 7 /0.26 0.80 52.00 0.25 1.25 0.60 4.80 5.20 39
    5 x0.35+(0.35) 7 /0.26 0.80 52.00 0.25 1.25 0.60 5.40 5.80 46

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
