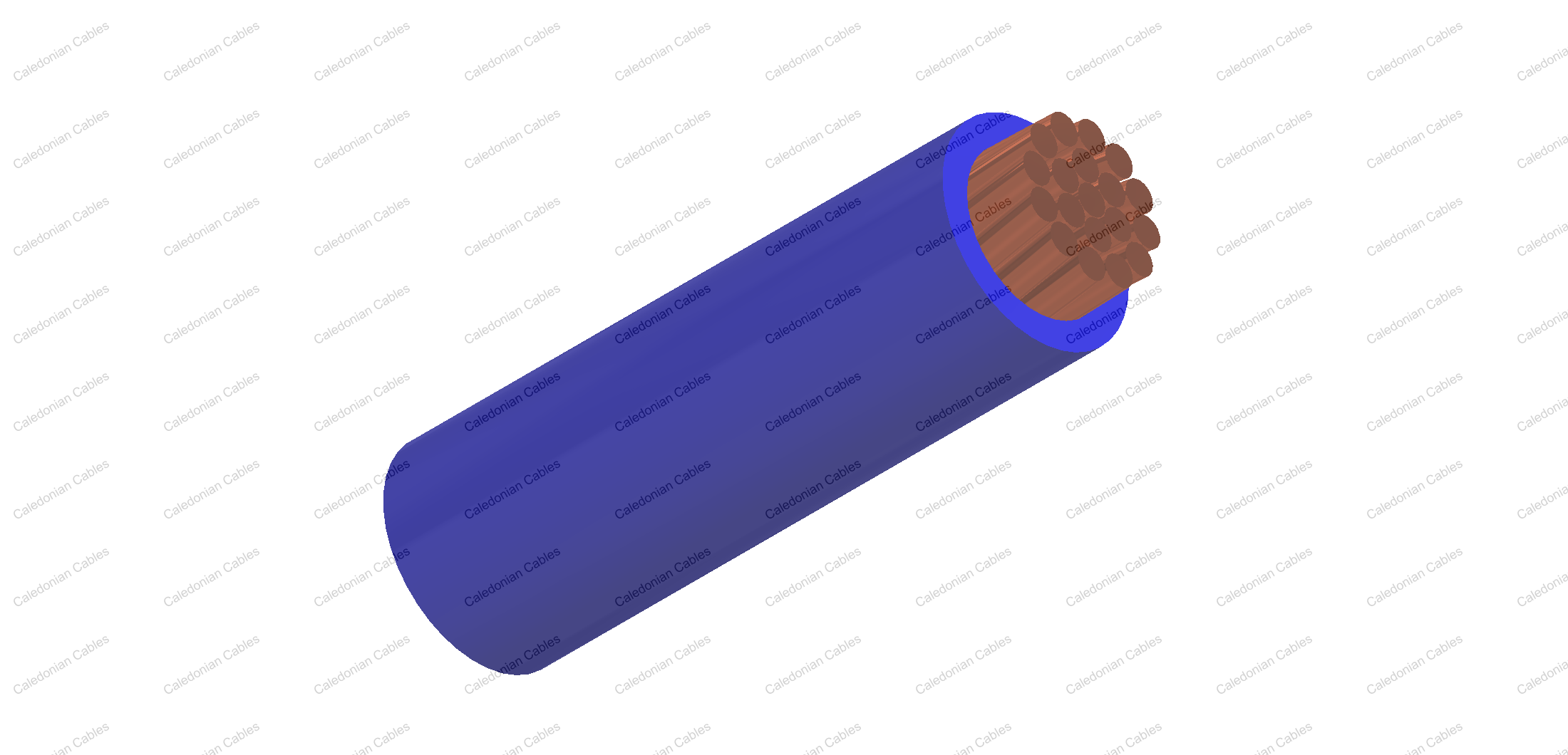

    FLR7Y-A

    Application and Description

    This ETFE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

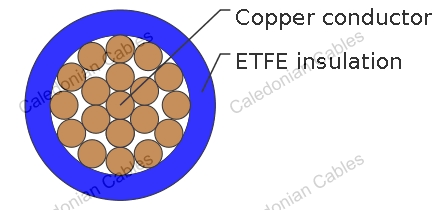

    Construction

    • Conductor: Cu-ETP1 bare/tinned according to DIN EN 13602
    • Insulation: ETFE
    • Standard Compliance: ISO 6722 Class E

    Special properties:

    Highly resistant against acids,lyes,petrol and diesel/excellent chmical resistance/good mechanical & thermal properties

    Technical Parameters

    Operating temperature: –40°C to +180°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of ires Diameter of Conductor
    max.
    Electrical Resistance at 20°C Bare/Tinned
    max.
    Nominal Thickness Overall Diameter
    min.
    Overall Diameter
    max.
    Weight approx.
    mm2 No./mm mm mΩ/m mm   mm kg/km
    1x0.35 7/0.23 0.8 52/53.5 0.20 1.2 1.3 5
    1x0.5 19/0.19 1.0 37.1/38.2 0.22 1.4 1.6 6
    1x0.75 19/0.23 1.2 24.7/25.4 0.24 1.7 1.9 9
    1x1 19/0.26 1.35 18.5/19.1 0.24 1.9 2.1 11
    1x1.5 19/0.32 1.7 12.7/13.0 0.24 2.2 2.4 17
    1x2.5 19/0.41 2.2 7.6/7.82 0.28 2.7 3.0 25

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
