    FLR4Y

    • FLR4Y - Automotive Cable

    Application and Description

    This PA insulated single-core cable is used for automobiles, motorcycles and other motor vehicles. Especially suitable for use as fuel gauge wire, this cable is gasoline and diesel resistant.

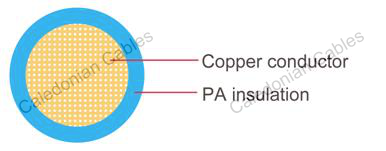

    Construction

    • Conductor: Cu-ETP1 bare or tinned according to DIN EN13602
    • Insulation: Polyamide (PA)
    • Standard Compliance: ISO 6722 Class B

    Technical Parameters

    Operating temperature: –40°C to 105°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal
    cross- section
    No. and Dia. of Wires Diameter
    max.
    Resistance at 20°C
    Bare/Tinned
    max.
    Thickness Wall
    min.
    Overall Diameter Weight approx.
    mm2 No./mm mm mΩ/m mm mm kg/km
    FLR4Y-A
    1x0.35 7/0.26 0.80 52.00/54.50 0.20 1.30 4
    1x0.50 19/0.19 1.00 37.10/38.20 0.22 1.60 6
    1x0.75 19/0.23 1.20 24.70/25.40 0.24 1.90 8
    1x1.00 19/0.26 1.35 18.50/19.10 0.24 2.10 11
    1x1.50 19/0.32 1.70 12.70/13.00 0.24 2.40 15
    1x2.50 19/0.41 2.20 7.60/7.80 0.28 3.00 24
    FLR4Y-B
    1x0.35 12/0.21 0.90 52.00/54.50 0.20 1.40 4
    1x0.50 16/0.21 1.00 37.10/38.20 0.22 1.60 6
    1x0.75 24/0.21 1.20 24.70/25.40 0.24 1.90 8
    1x1.00 32/0.21 1.35 18.50/19.10 0.24 2.10 11
    1x1.50 30/0.26 1.70 12.70/13.00 0.24 2.40 15
    1x2.50 50/0.26 2.20 7.60/7.80 0.28 3.00 24
    1x4.00 56/0.31 2.75 4.70/4.80 0.32 3.70 40

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
