    FLR2X11Y

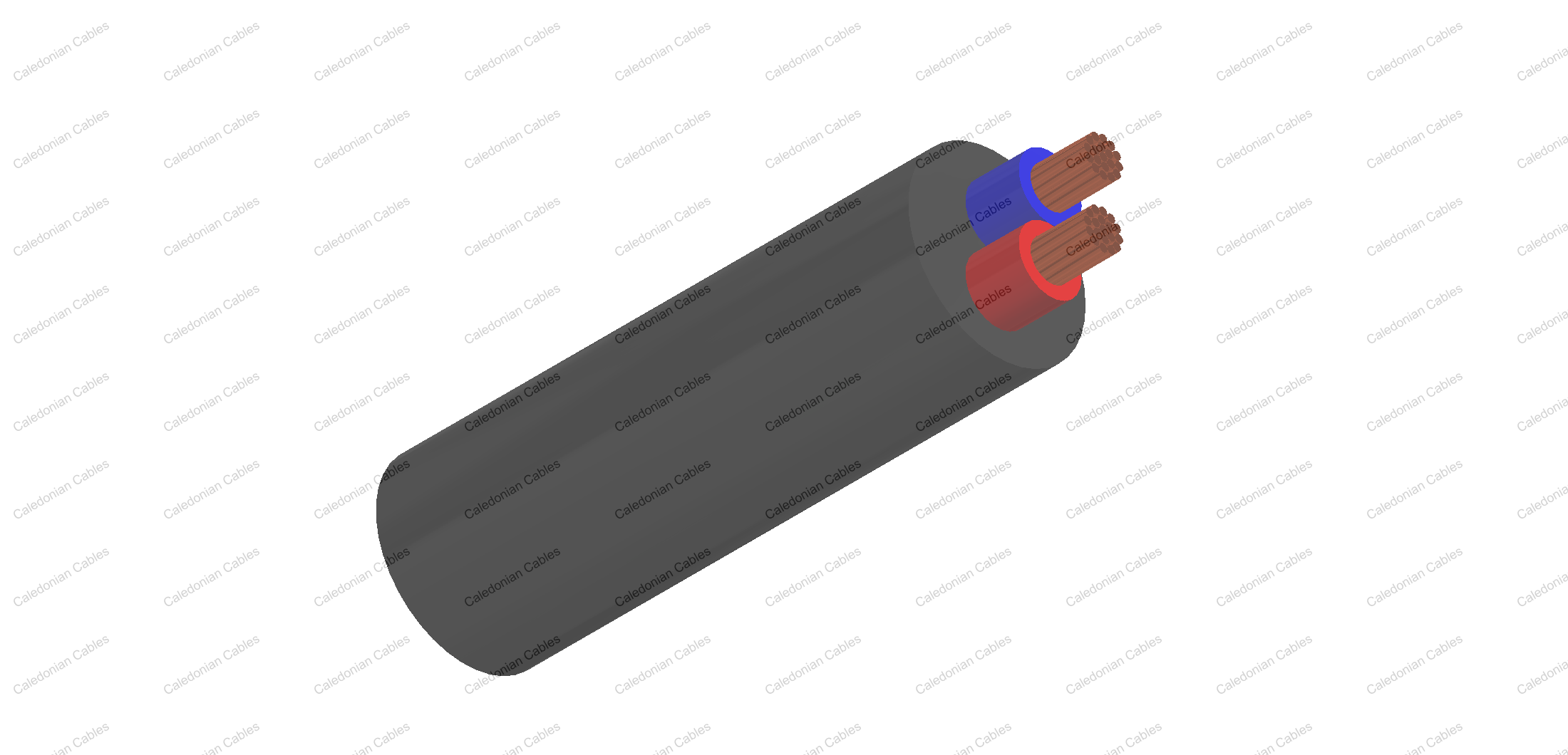

    • FLR2X11Y - Automotive Cable

    Application and Description

    This XLPE insulated, PUR sheathed multi-cores cable is used for ABS systems. it has good bending strength properties.

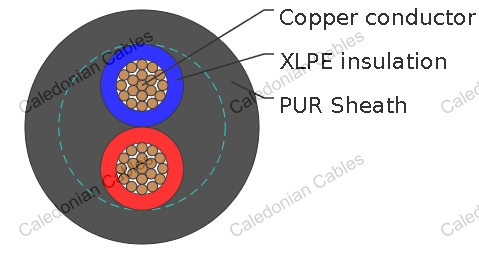

    Construction

    • Conductor: Cu-ETP1 bare or tinned according to DIN EN 13602
    • Insulation: Crosslinked polyethylene (XLPE)
    • Sheath: Polyether polyurethane (PUR)
    • Sheath colour: Black
    • Standard: ISO 6722 Class C

    Special Properties:

    Special conductor highly tensile and bending resistant Cu-alloy, Cadmium-free.

    Technical Parameters

    Operating temperature: –40°C to +125 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Diameter
    of Core
    Sheath
    Thickness
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
    2 x0.35 12/0.21 0.90 52.00/54.50 0.25 1.35 0.50 3.50 3.90 18
    2 x0.50 19/0.19 1.00 37.10/40.10 0.30 1.50 0.65 4.20 4.60 25
    2 x0.50 64/0.10 1.00 38.20/40.10 0.35 1.60 0.95 5.00 5.40 36
    2 x0.75 42/0.16 1.20 24.70/27.10 0.50 2.20 0.90 6.00 6.40 46

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
