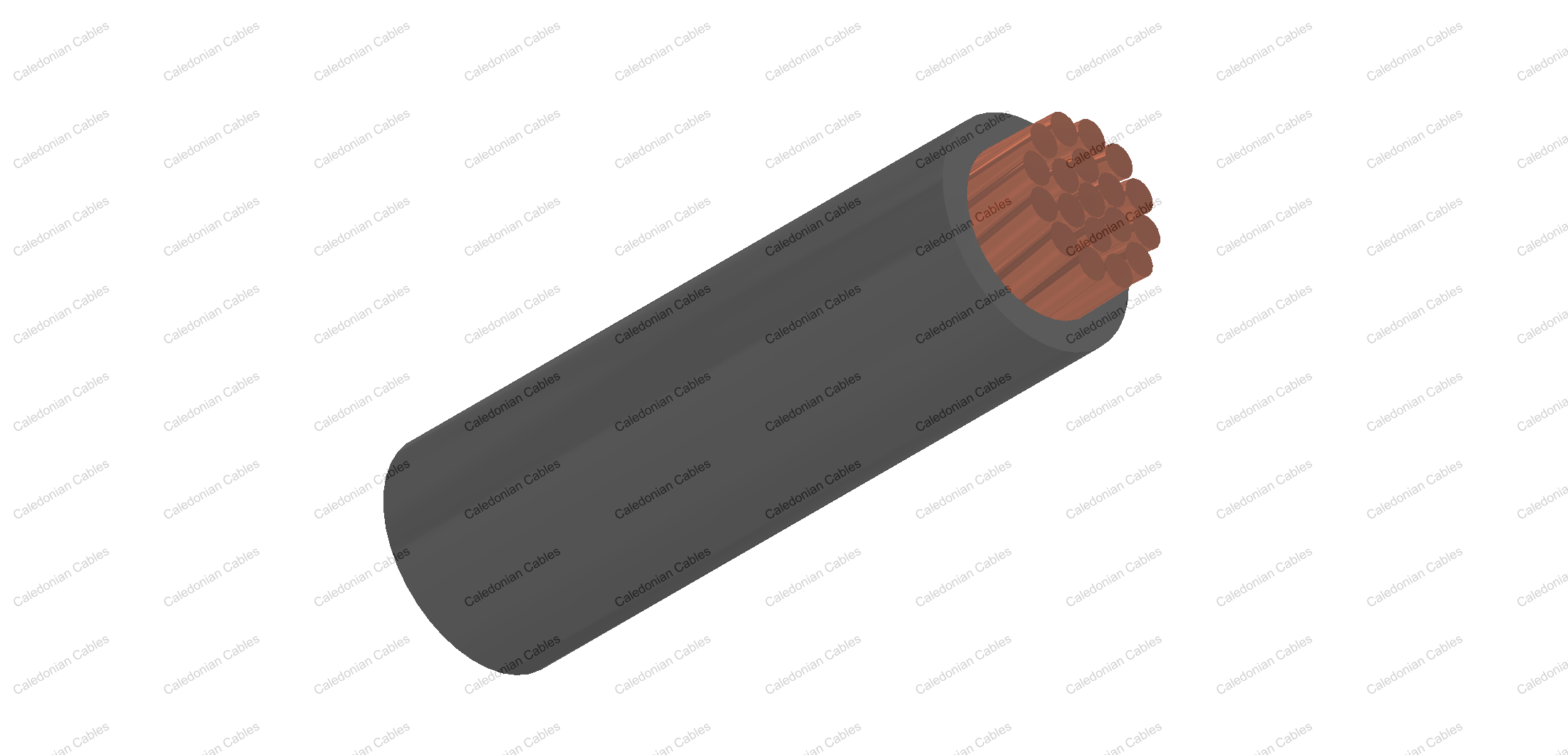

    FLR14Y

    • FLR14Y - Automotive Cable

    Application and Description

    This PFA insulated automotive cable is used for cable harnesses,cable with excellent resistance against chemicals,can be used as an alternative to PTFE.

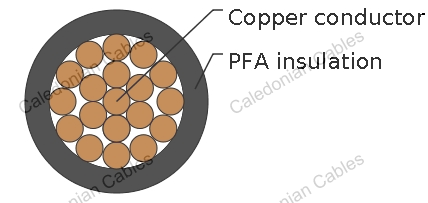

    Construction

    • Conductor: Sliver or Nickel plated copper
    • Insulation: PFA
    • Standard Compliance: ISO 6722 Class H

    Technical Parameters

    Operating temperature: –80°C to +260°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of ires Diameter of Conductor
    max.
    Electrical Resistance at 20°C Bare/Tinned
    max.
    Nominal Thickness Overall Diameter
    min.
    Overall Diameter
    max.
    Weight approx.
    mm2 No./mm mm mΩ/m mm   mm kg/km
    1x0.5 19/0.19 1.00 38.2 0.22 1.4 1.60 7
    1x0.75 19/0.22 1.20 25.4 0.24 1.7 1.90 10
    1x1 19/0.25 1.35 19.1 0.24 1.9 2.10 12
    1x1.5 19/0.32 1.70 13 0.24 2.2 2.40 17
    1x2.5 19/0.40 2.20 7.8 0.28 2.7 3.00 28
    1x4 56/0.30 2.70 4.8 0.32 3.4 3.70 45

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
