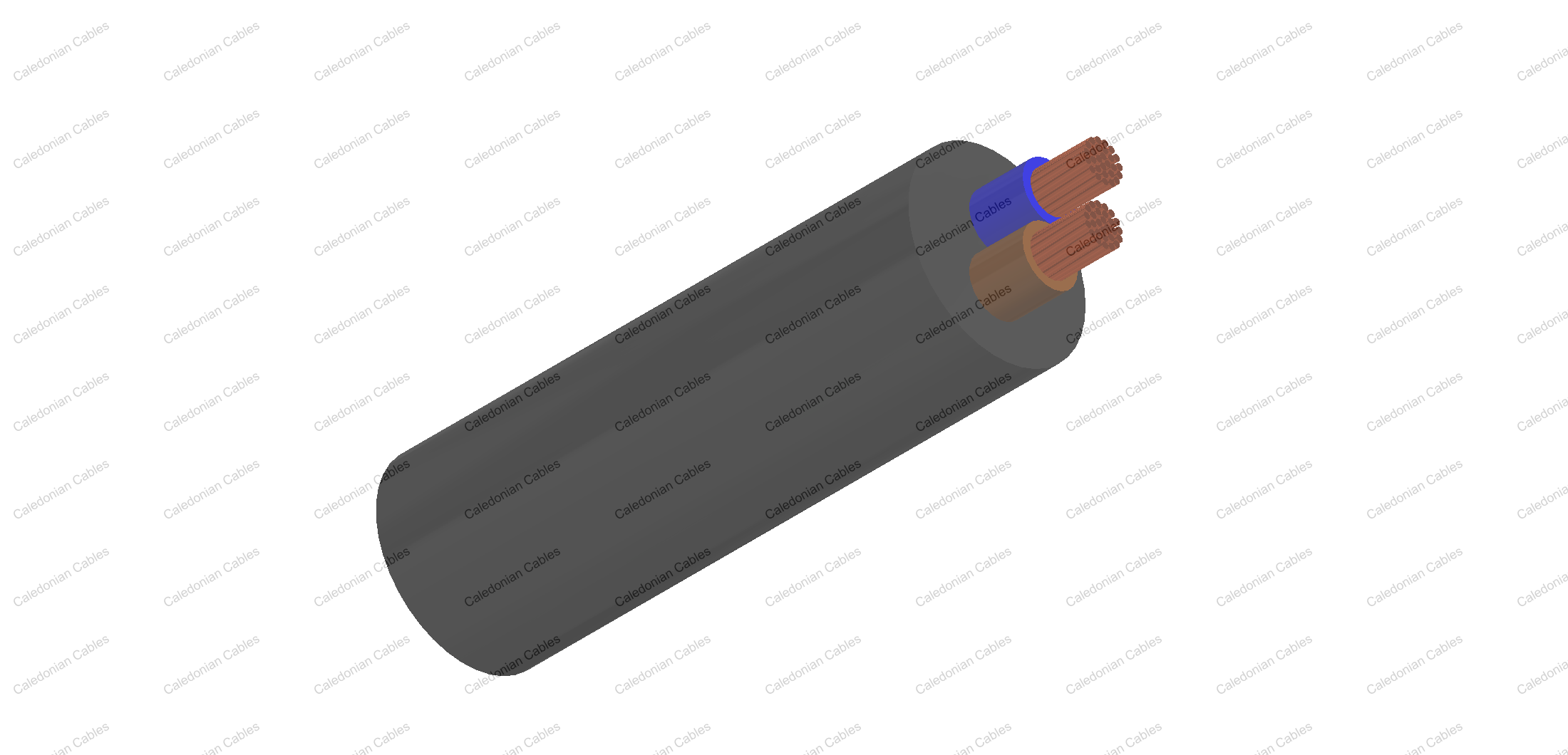

    FLR13Y11Y

    Application and Description

    This TPE-E insulated , TPE-U sheathed low tension multi-cores cable is used for ABS systems, it has excellent abrasion resistance and better resistance to bending fatigue.

    Construction

    • Conductor: Cu-ETP1 according to DIN EN13602
    • Insulation: Thermoplasticity polyester (TPE-E)
    • Sheath: Thermoplasticity polyurethane (TPU)
    • Standard: ISO 6722 Class C

    Technical Parameters

    Operating temperature: –40°C to +125 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Diameter
    of Core
    Sheath
    Thickness
    Overall
    Diameter
    min.
    Overall Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
    2 x 0.50 28 /0.16 1.00 37.10 0.20 1.40 0.60 3.85 4.15 22
    2 x 0.50 28 /0.16 1.00 37.10 0.20 1.40 0.85 4.35 4.65 27
    2 x 0.50 28 /0.16 1.00 37.10 0.35 1.70 0.80 4.80 5.20 32
    2 x 0.60 80/0.11 1.20 24.70 0.20 1.45 0.80 4.35 4.65 28
    2 x 0.75 42/0.16 1.20 27.10 0.30 1.80 1.30 6.00 6.40 48
    2 x 0.75 96 /0.10 1.20 27.10 0.30 1.80 1.30 6.00 6.40 62

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
