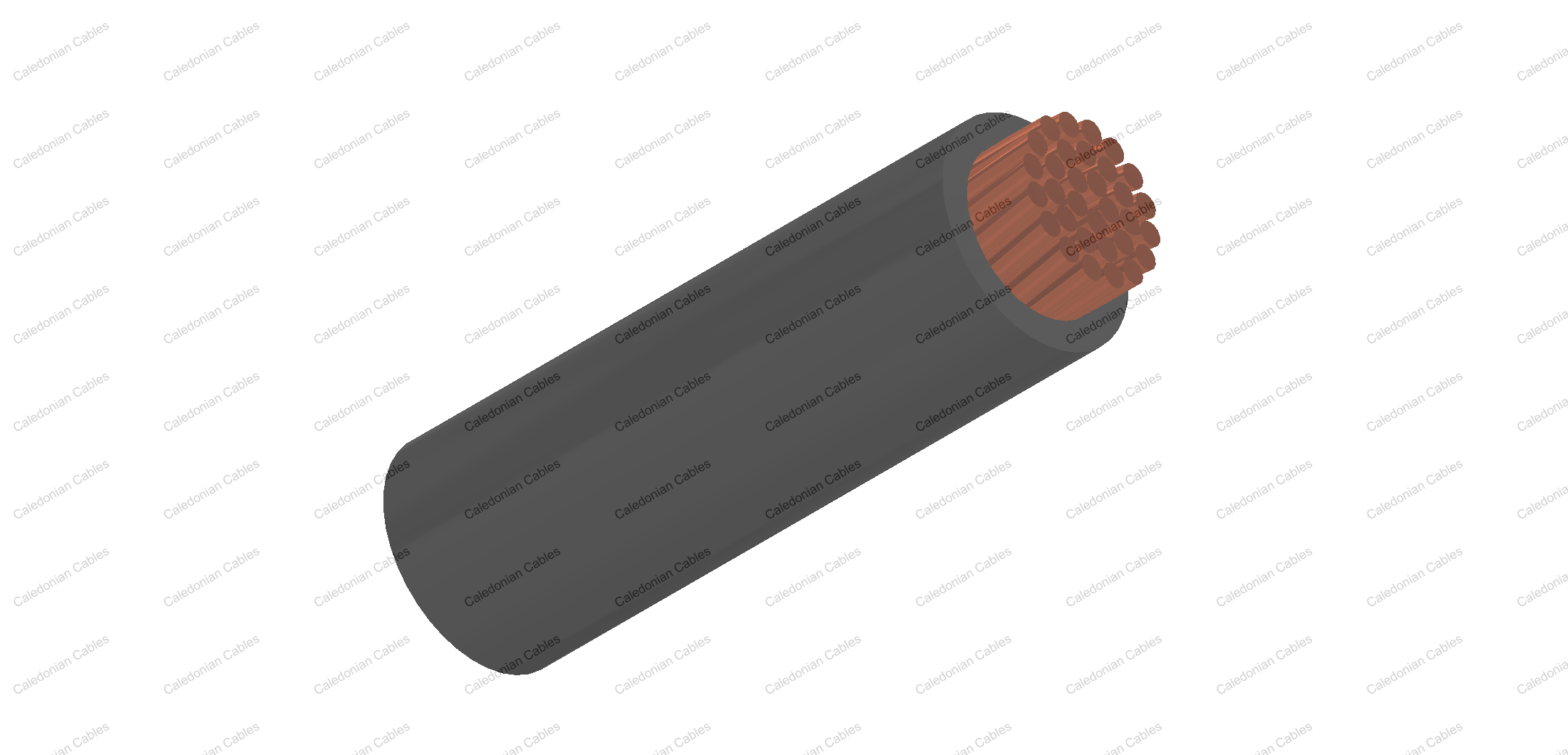

    FLR12Y-B

    Application and Description

    This TPE-E insulated single-core cable is used for cable harnesses.

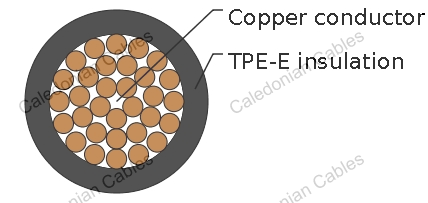

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN 13602
    • Insulation: TPE-E
    • Standard Compliance: ISO 6722 Class D

    Technical Parameters

    Operating temperature: –40°C to +150°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of ires Diameter of Conductor
    max.
    Electrical Resistance at 20°C Bare/Tinned
    max.
    Nominal Thickness Overall Diameter
    min.
    Overall Diameter
    max.
    Weight approx.
    mm2 No./mm mm mΩ/m mm   mm kg/km
    1x0.35 12/0.21 0.90 55.5 0.20 1.3 1.4 4.5
    1x0.50 16/0.21 1.00 38.2 0.22 1.5 1.6 6.6
    1x0.75 24/0.21 1.20 25.4 0.24 1.8 1.9 9.0
    1x1.00 32/0.21 1.35 19.1 0.24 2.0 2.1 11
    1x1.50 30/0.26 1.70 13.0 0.24 2.3 2.4 16
    1x2.50 50/0.26 2.20 7.82 0.28 2.9 3.0 26
    1x4.00 56/0.31 2.75 4.85 0.32 3.6 3.7 42
    1x6.00 84/0.31 3.30 3.23 0.32 4.2 4.3 61

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
