    FL6Y2G

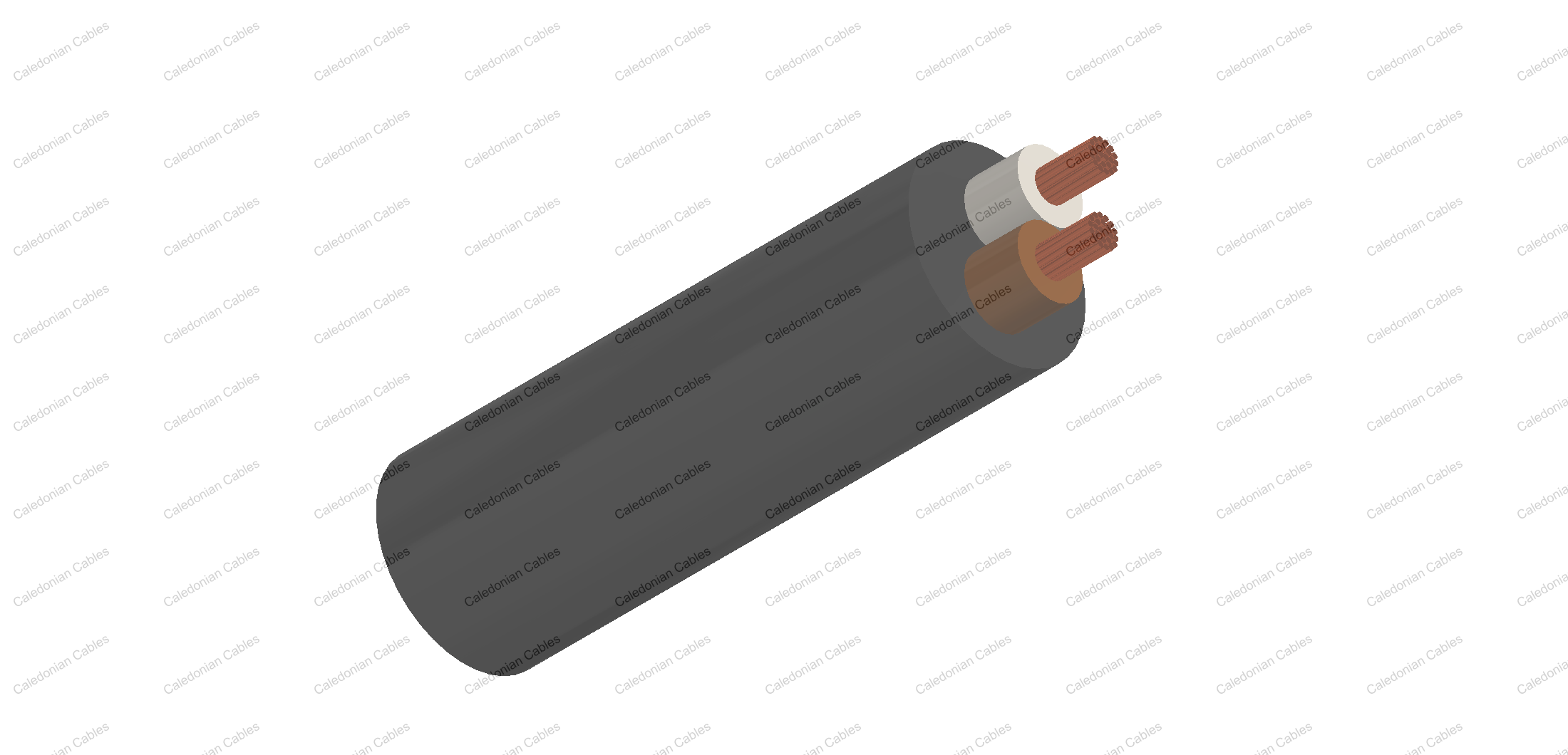

    • FL6Y2G - Automotive Cable

    Application and Description

    This FEP insulated multi-cores cable is used for automobiles.

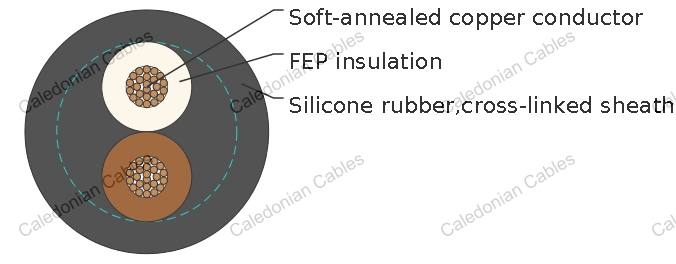

    Construction

    • Conductor: Cu-ETP1 or bare according to DIN EN 13602
    • Insulation: Fluorinated ethylene propylene(FEP) insulation
    • Sheath: Siliconne rubber,cross-linked according to ISO 14572 class F
    • Standard: ISO 6722 Class F

    Technical Parameters

    Operating temperature: –40°C to +210°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.    		 Electrical
    Resistance at
    20°C
    Max.    		 Thickness
    Wall
    nom.    		 Sheath
    Thickness    		 Overall
    Diameter
    min.    		 Overall
    Diameter
    max.    		 Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm mm kg/km
    2x0.35 12/0.21 0.8 52 0.4 0.53 4.6 5 32
    2x0.25 24/0.16 0.7 86.5 0.4 0.53 3.4 3.8 24

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
