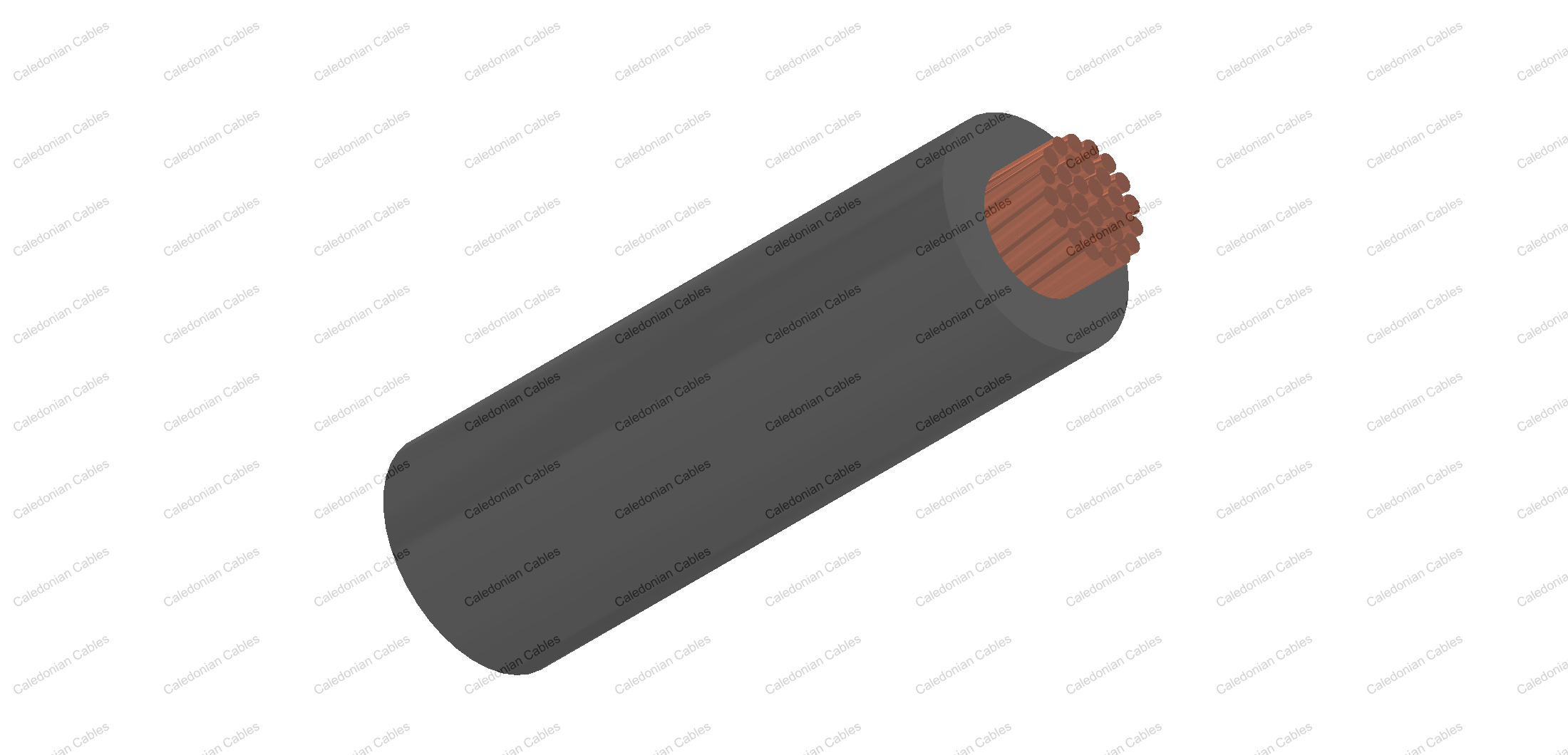

    FL2X

    • FL2X - Automotive Cable

    Application and Description

    This PVC insulated single-core cable is used for low voltage electric installations in vehicles.

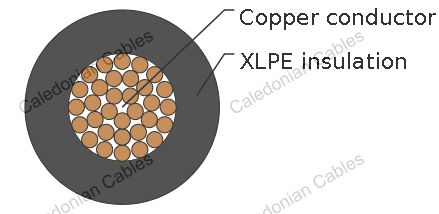

    Construction

    • Conductor: Cu-ETP1 bare according to DIN EN 13602
    • Insulation: XLPE
    • Standard Compliance: ISO 6722 Class C

    Technical Parameters

    Operating temperature: –40°C to 125°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal
    cross- section
    No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at
    20°C max.
    Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
    mm2 No./mm mm mΩ/m mm   mm kg/km
    1x0.50 16/0.21 1.10 37.1 0.6 2.1 2.3 8
    1x0.75 24/0.21 1.30 24.7 0.6 2.35 2.5 11
    1x1.00 32/0.21 1.50 18.5 0.6 2.55 2.7 14
    1x1.50 30/0.26 1.80 12.7 0.6 2.85 3.0 19
    1x2.00 40/0.26 2.00 9.42 0.6 3.15 3.3 24
    1x2.50 50/0.26 2.20 7.6 0.7 3.45 3.6 30
    1x3.00 60/0.26 2.40 6.15 0.7 3.95 4.1 38
    1x4.00 56/0.31 2.80 4.71 0.8 4.20 4.4 48
    1x6.00 84/0.31 3.40 3.14 0.8 4.80 5.0 68

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
