    EB/HDEB

    • EB/HDEB, Japanese Standard, Automotive Cable

    Application and Description

    This PVC insulated single-core cable is used in low voltage circuits of battery for automobiles.

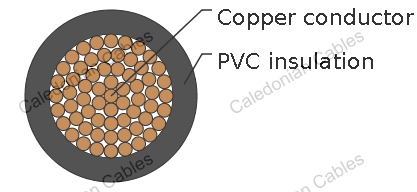

    Construction

    • Conductor: Cu-ETP1 according to JIS C 3102
    • Insulation: PVC
    • Standard Compliance: JIS C 3406
    • Features:
      EB wires is for grounding (-side) and thin type; It consists of complex stranded conductors (flexible type).
      HDEB wires are thicker type than EB wires to provide increased mechanical strength.

    Technical Parameters

    Operating temperature:–40 °C to +100 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    EB
    1 x5 63/0.32 3.10 3.58 0.60 4.30 4.70 57
    1 x9 112/0.32 4.20 2.00 0.60 5.40 5.80 95
    1 x15 171/0.32 5.30 1.32 0.60 6.50 6.90 147
    1 x20 247/0.32 6.50 0.92 0.60 7.70 8.00 207
    1 x30 361/0.32 7.80 0.63 0.60 9.00 9.40 303
    1 x40 494/0.32 9.10 0.46 0.60 10.30 10.80 374
    1 x50 608/0.32 10.10 0.37 0.60 11.30 11.90 473
    1 x60 741/0.32 11.10 0.31 0.60 12.30 12.90 570
    HDEB
    1 x9 112/0.32 4.20 2.00 1.00 6.20 6.50 109
    1 x15 171/0.32 5.30 1.32 1.10 7.50 8.00 161
    1 x20 247/0.32 6.50 0.92 1.10 8.70 9.30 225
    1 x30 361/0.32 7.80 0.63 1.40 10.60 11.30 331
    1 x40 494/0.32 9.10 0.46 1.40 11.90 12.60 442
    1 x60 741/0.32 11.10 0.31 1.60 14.30 15.10 655

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
