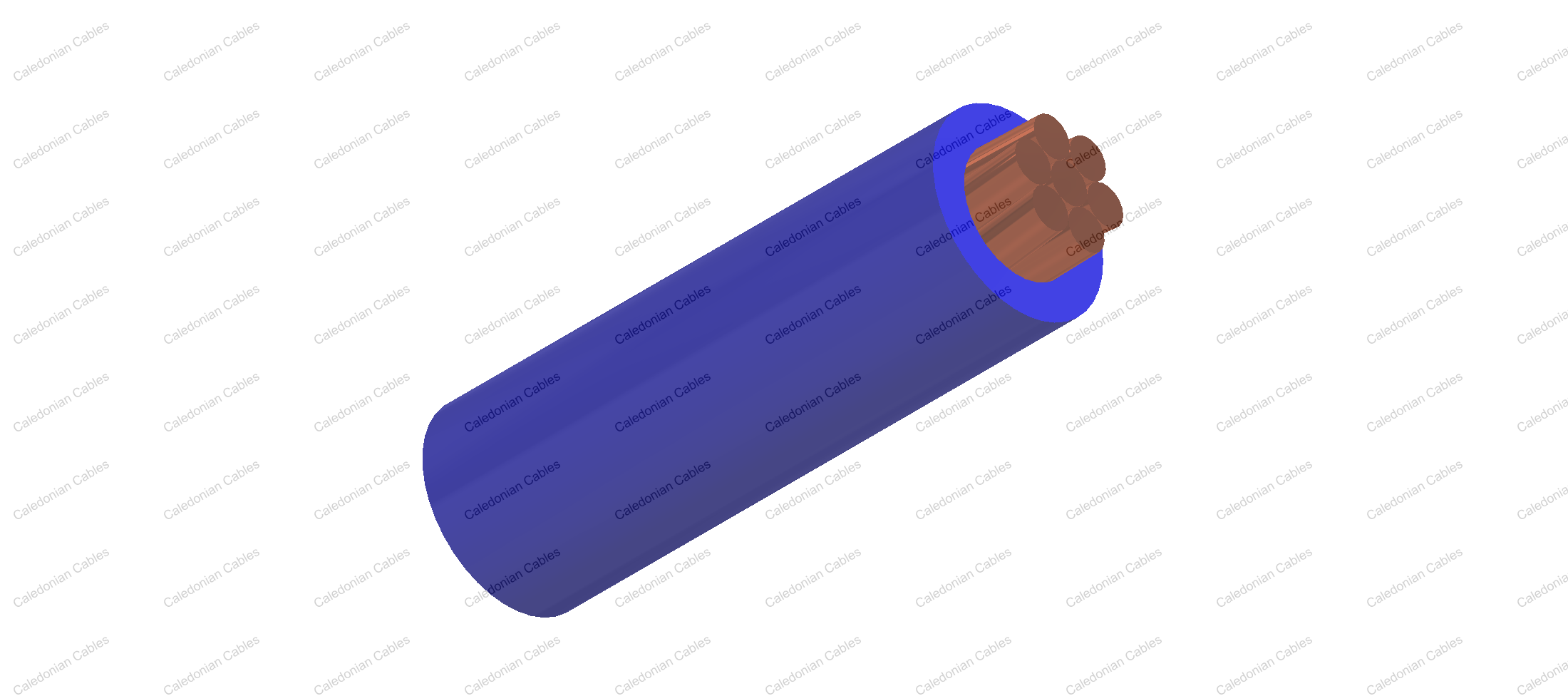

    CAVUS

    Application and Description

    This PVC insulated single-core cable is used for automotive wiring.

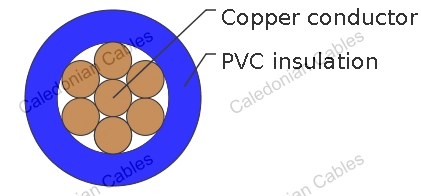

    Construction

    • Conductor: Cu-ETP1 according to JIS C 3102
    • Insulation: PVC
    • Standard Compliance: JASO D 611-94

    Technical Parameters

    Operating temperature:–40 °C to +80 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1 x0.30 7/0.26 0.70 50.20 0.20 1.10 1.20 4
    1 x0.50 7/0.32 0.90 32.70 0.20 1.30 1.40 6
    1 x0.85 11/0.32 1.10 20.80 0.20 1.50 1.60 9
    1 x1.25 16/0.32 1.40 14.30 0.20 1.80 1.90 13

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
