    AVXSF

    Japanese Standard,Automotive Cable

    • AVXSF,Japanese Standard,Automotive Cable

    Application and Description

    This XLPVC insulated single-core cable is used in low voltage circuits in automobiles(vehicles and motorcycles)

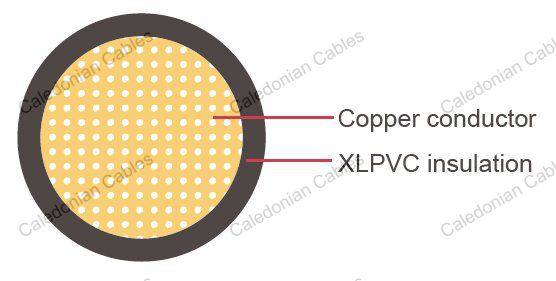

    Construction

    • Conductor: Annealed standed copper
    • Insulation: Cross-linked Polyvinyl Chloride(XLPVC)
    • Standard Compliance: HKMC ES 91110-05

    Technical Parameters

    Operating temperature:–45 °C to +200°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x10.0 399/0.18 4.2 1.85 0.9 6.0 6.2 110
    1x15.0 588/0.18 5.0 1.32 1.1 7.2 7.5 160
    1x20.0 779/0.18 6.3 0.99 1.2 8.7 9.0 220
    1x25.0 1007/0.18 7.1 0.76 1.3 9.7 10.0 280
    1x30.0 1159/0.18 8.0 0.69 1.3 10.6 10.9 335
    1x40.0 1554/0.18 9.2 0.50 1.4 12.0 12.4 445

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
