    AVUHSF

    Japanese Standard,Automotive Cable

    • AVUHSF,Japanese Standard,Automotive Cable

    Application and Description

    This PVC insulated single-core cable is used in low voltage circuits in automobiles(Battery Cable)

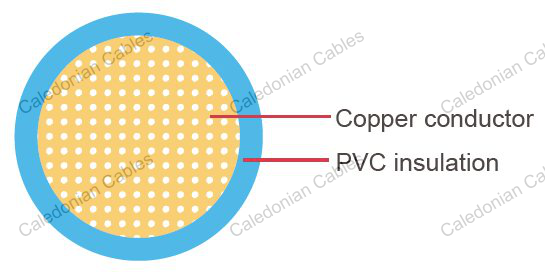

    Construction

    • Conductor: Annealed standed copper
    • Insulation: Polyvinyl Chloride(PVC)
    • Standard Compliance: ES SPEC

    Technical Parameters

    Operating temperature:–40 °C to +135°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x5.0 207/0.18 3.0 3.94 0.8 4.6 4.8 62
    1x8.0 315/0.18 3.7 2.32 0.8 5.3 5.5 88
    1x10.0 399/0.18 4.15 1.76 0.9 6.0 6.2 120
    1x15.0 588/0.18 5.0 1.25 1.1 7.2 7.5 170
    1x20.0 779/0.18 6.3 0.99 1.2 8.7 9.0 230
    1x30.0 1159/0.18 8.0 0.61 1.3 10.6 10.9 330
    1x40.0 1558/0.18 9.2 0.46 1.4 12.0 12.4 430
    1x50.0 1919/0.18 10.0 0.39 1.5 13.0 13.4 535
    1x60.0 1121/0.26 11.0 0.29 1.5 14.0 14.4 640
    1x85.0 1596/0.26 13.0 0.21 1.6 16.2 16.6 895
    1x100.0 1881/0.26 15.0 0.17 1.6 18.2 18.6 1050

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
