    AVUHSF-BS

    Japanese Standard Automotive Cable

    • AVUHSF-BS,Japanese Standard,Automotive Cable

    Application and Description

    This Vinyl insulated single-core cable is used in EPS (Electric power steering) for automobiles.

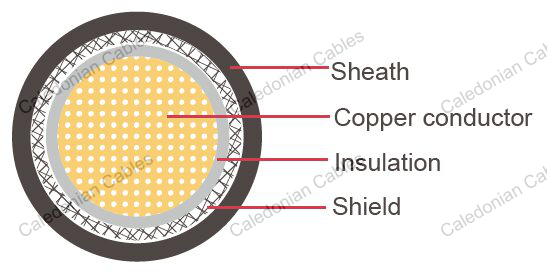

    Construction

    • Conductor: Annealed standed copper
    • Insulation: Vinyl
    • Shield: Tin coated annealed stranded copper
    • Sheath: Vinyl
    • Standard Compliance: HKMC ES 91110-05

    Technical Parameters

    Operating temperature:–40 °C to +135°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x5.0 207/0.18 3.0 3.94 0.8 6.7 7.1 72
    1x8.0 315/0.18 3.7 2.32 0.8 7.5 7.9 128
    1x10.0 399/0.18 4.2 1.76 0.9 8.2 8.6 153

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
