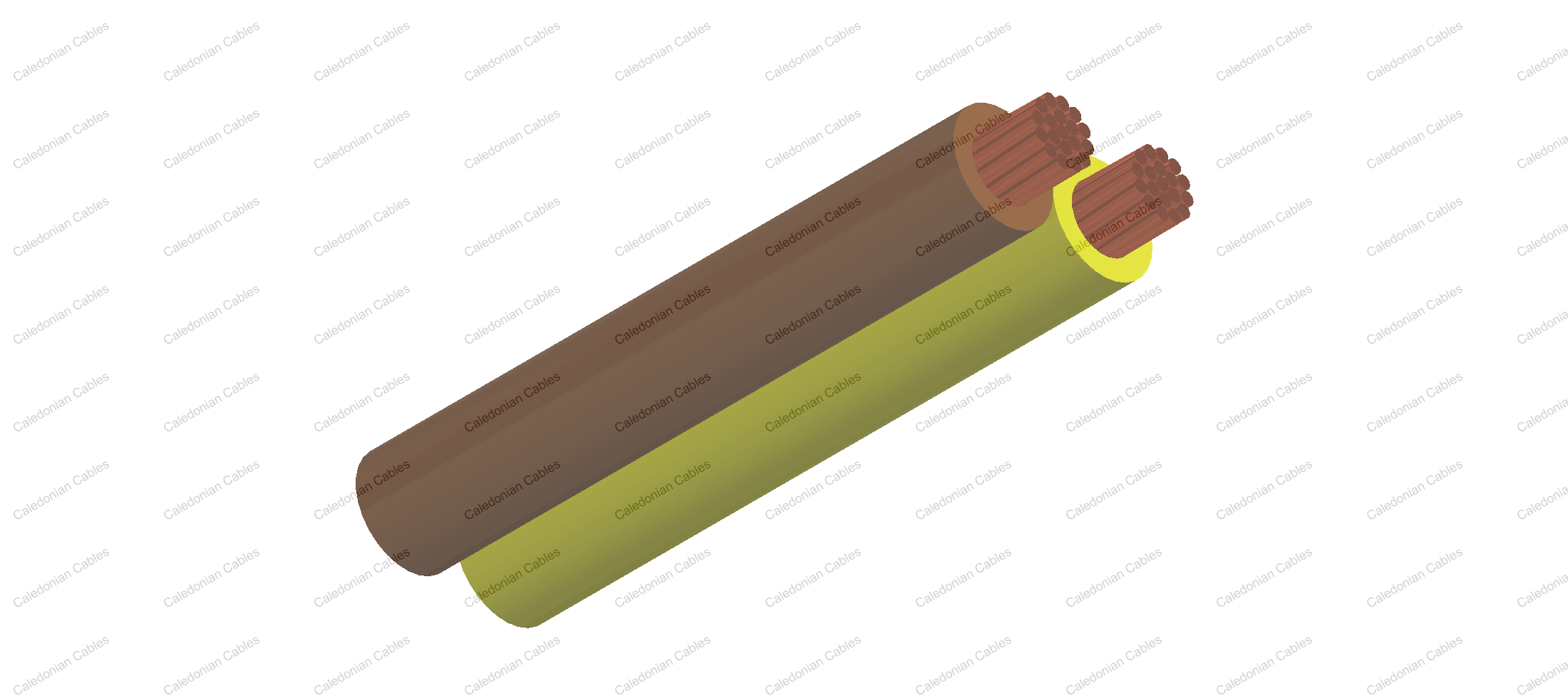

    AVSSXFT

    Application and Description

    This Cross-linked Polyvinyl Chloride insulated cable is used in low voltage signal circuits in automobiles. Superior heat resistant with irradiated PVC.

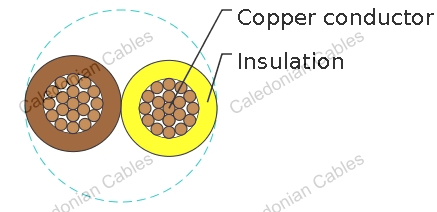

    Construction

    • Conductor: Annealed stranded copper
    • Insulation: Cross-linked Polyvinyl Chloride
    • Standard Compliance: JASO D611; ES SPEC

    Technical Parameters

    Operating temperature:–40 °C to +100 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    0.3 19/0.16 0.8 49.4 0.3 2.8 3.0 10.3
    0.5 19/0.19 1.0 35.0 0.3 3.2 3.4 14.0
    0.85 37/0.17 1.2 22.0 0.3 3.6 3.8 20.4
    1.25 37/0.21 1.5 14.6 0.3 4.2 4.4 29.5

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
