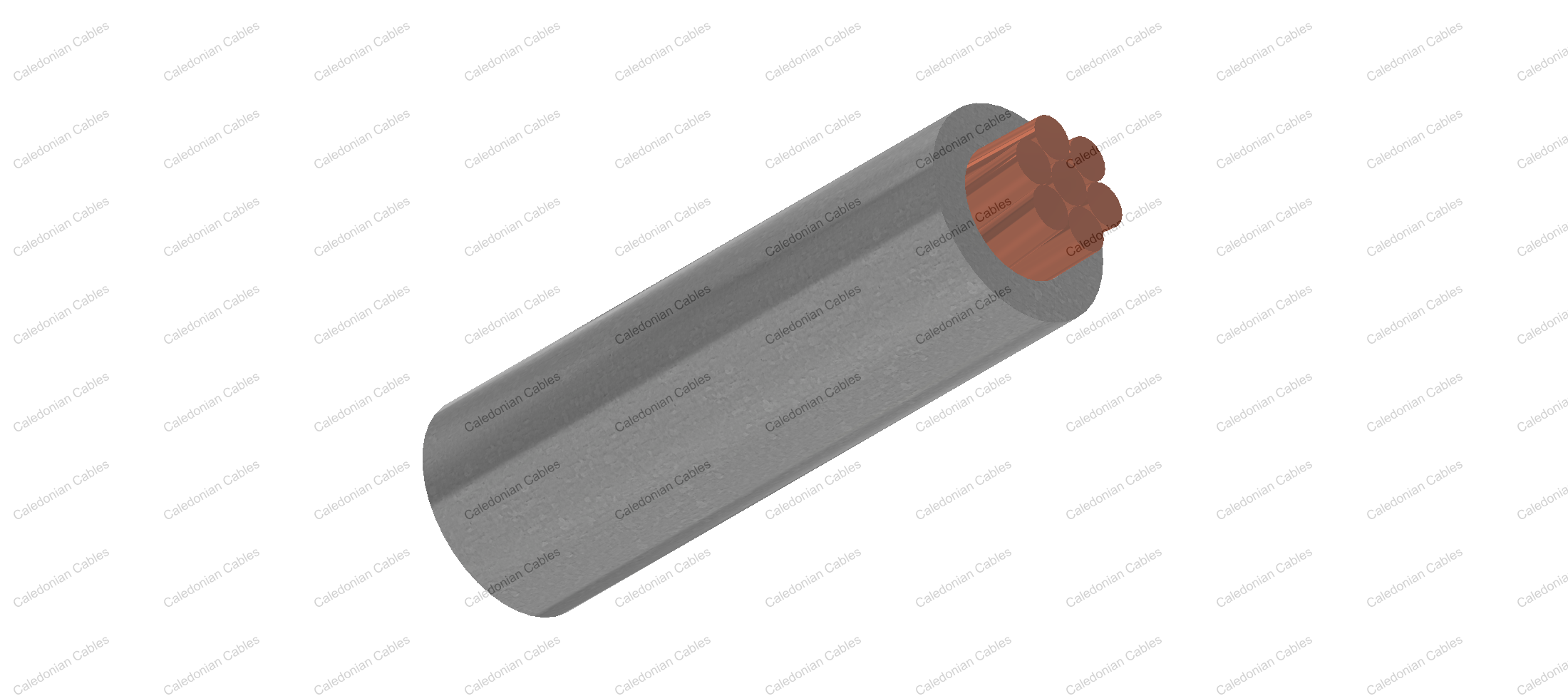

    AVSSX/AESSX

    • AVSSX/AESSX,Japanese Standard,Automotive Cable

    Application and Description

    This XLPVC (XLPE) insulated single-core cable is used in electric system for automobile.

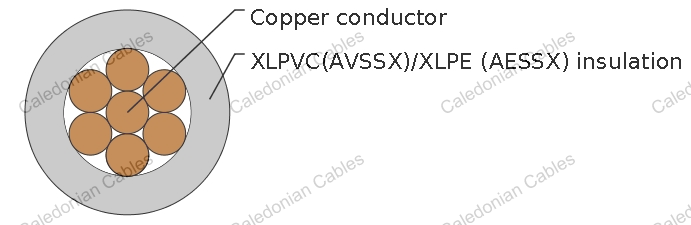

    Construction

    • Conductor: Cu-ETP1 bare or tinned according to JIS C3102
    • Insulation: XLPVC (AVSSX)
      XLPE (AESSX)
    • Standard Compliance: JASO D 608-92

    Technical Parameters

    Operating temperature:–40 °C to +105 °C (AVSSX)
    Operating temperature:–40 °C to +120 °C (AESSX)

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    AVSSX
    1 x0.30 7/0.26 0.80 50.20 0.24 1.40 1.50 5
    1 x0.50 7/0.32 1.00 32.70 0.24 1.60 1.70 7
    1 x0.85 19/0.24 1.20 21.70 0.24 1.80 1.90 10
    1 x0.85 7/0.40 1.10 20.80 0.24 1.80 1.90 10
    1 x1.25 19/0.29 1.50 14.90 0.24 2.10 2.20 15
    1 x2.00 19/0.37 1.90 9.00 0.32 2.70 2.80 23
    1 x0.3f 19/0.16 0.80 48.80 0.24 1.40 1.50 2
    1 x0.5f 19/0.19 1.00 34.60 0.30 1.60 1.70 7
    1 x0.75f 19/0.23 1.20 23.60 0.30 1.80 1.90 10
    1 x1.25f 37/0.21 1.50 14.60 0.30 2.10 2.20 14
    1 x2f 37/0.26 1.80 9.50 0.40 2.60 2.70 22
    AESSX
    1 x0.3f 19/0.16 0.80 48.80 0.30 1.40 1.50 5
    1 x0.5f 19/0.19 1.00 64.60 0.30 1.60 1.70 7
    1 x0.75f 19/0.23 1.20 23.60 0.30 1.80 1.90 10
    1 x1.25f 37/0.21 1.50 14.60 0.30 2.10 2.20 14
    1 x2f 37/0.26 1.80 9.50 0.40 2.60 2.70 22

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
