    AVSS

    Japanese Standard Automotive Cable

    • AVSS,Japanese Standard,Automotive Cable

    Application and Description

    This PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and Motorcycles.

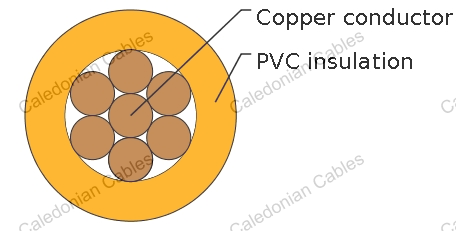

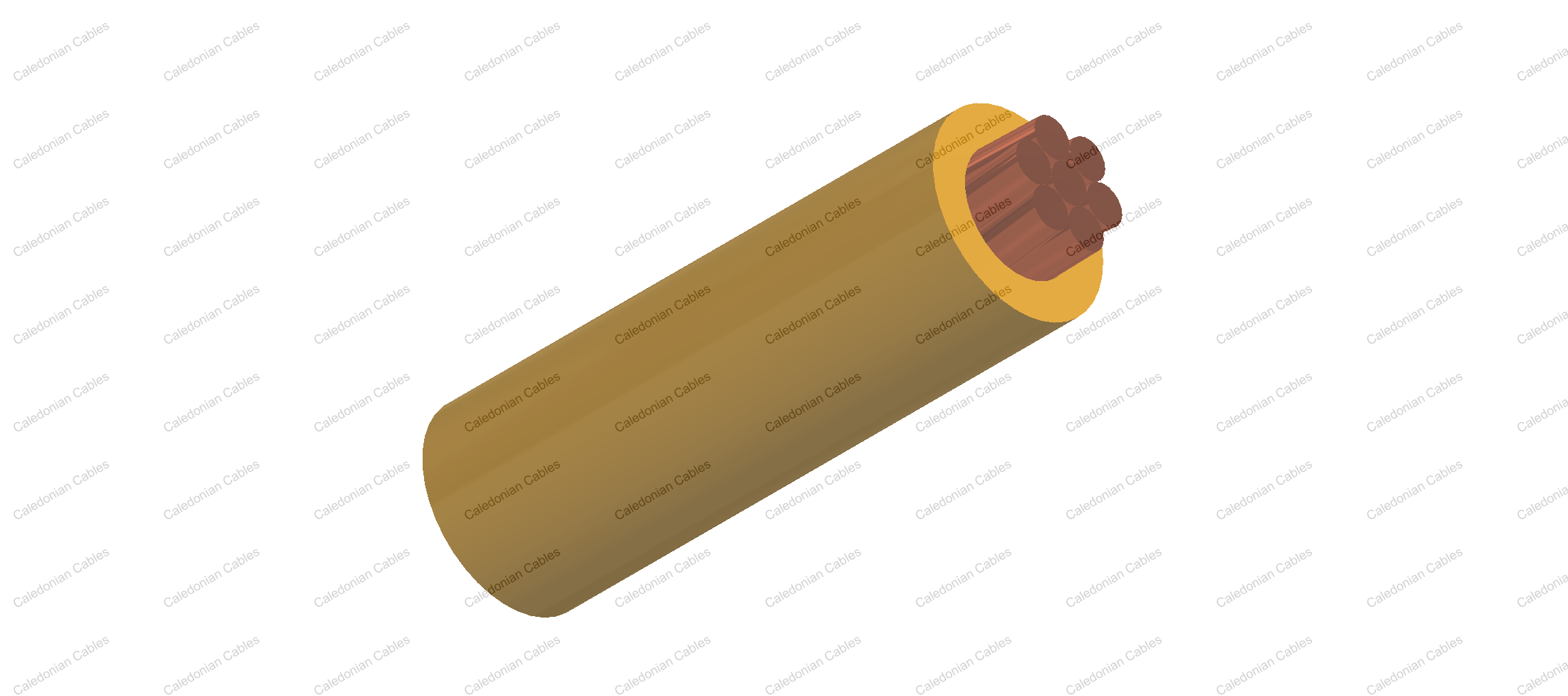

    Construction

    • Conductor: Cu-ETP1 bare according to JIS 3120
    • Insulation: PVC
    • Standard Compliance: JASO D 611-94

    Technical Parameters

    Operating temperature: –40 °C to +85 °C
    Intermittent temperature: 120°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1 x 0.30 7/0.26 0.80 50.20 0.30 1.40 1.50 5
    1 x 0.50 7/0.32 1.00 32.70 0.30 1.60 1.70 7
    1 x 0.85 19/0.24 1.20 21.70 0.30 1.80 1.90 10
    1 x 1.25 19/0.29 1.50 14.90 0.30 2.10 2.20 14
    1 x 0.3f 19/0.16 0.80 48.80 0.30 1.40 1.50 5
    1 x 0.5f 19/0.19 1.00 34.60 0.30 1.60 1.70 7
    1 x 0.75f 19/0.23 1.20 23.60 0.30 1.80 1.90 10
    1 x 1.25f 37/0.21 1.50 14.60 0.30 2.10 2.20 14
    1 x 2f 37/0.26 1.80 9.50 0.40 2.60 2.70 22

    The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
