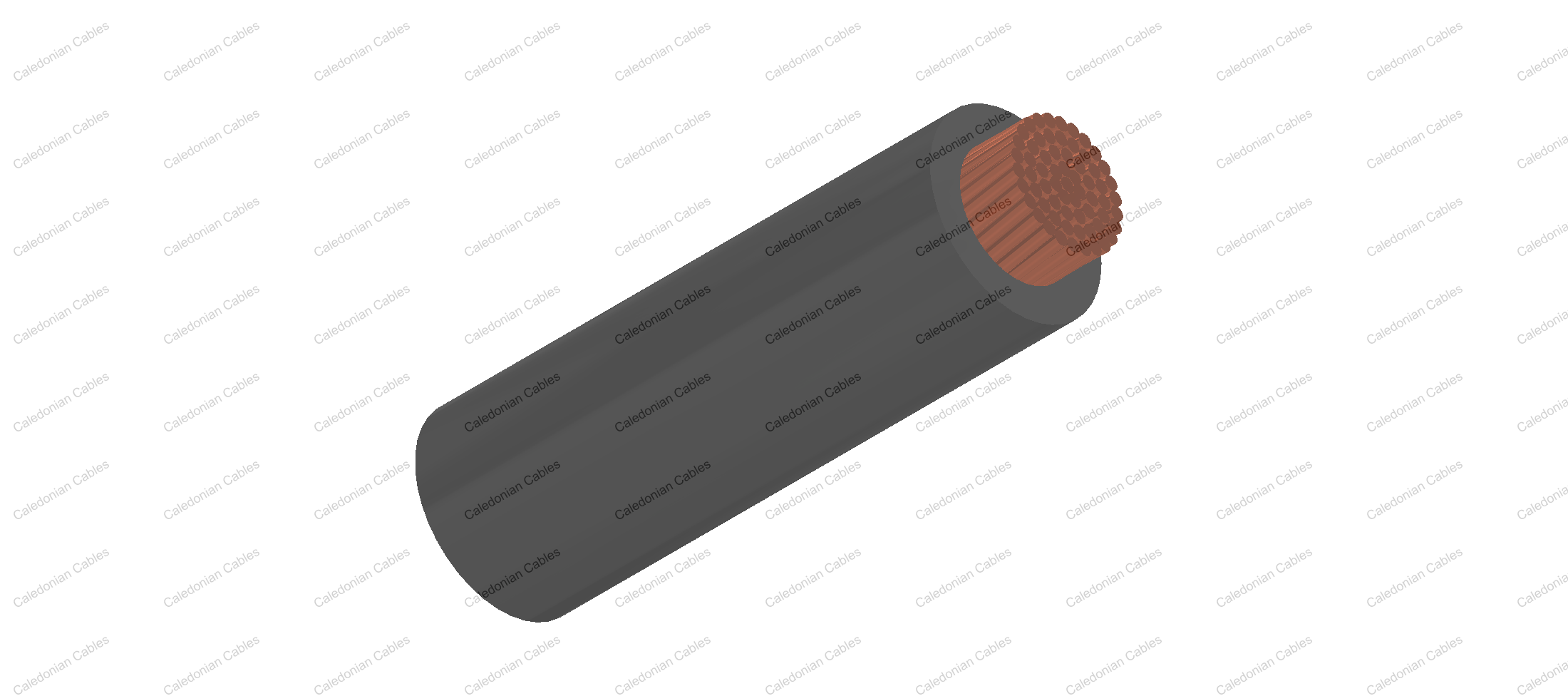

    AVS

    Japanese Standard Automotive Cable

    • AVS,Japanese Standard,Automotive Cable

    Application and Description

    This PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.

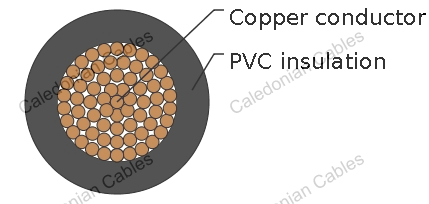

    Construction

    • Conductor: Cu-ETP1 bare according to D 609-90
    • Insulation: PVC
    • Standard Compliance: JASO D 611-94

    Technical Parameters

    Operating temperature: –40 °C to +85 °C
    Intermittent temperature: 120°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1 x0.3 7/0.26 0.80 50.20 0.50 1.80 1.9 6
    1 x0.5 7/0.32 1.00 32.70 0.60 2.10 2.40 7
    1 x0.85 11/0.32 1.20 20.80 0.60 2.30 2.60 10
    1 x1.25 16/0.32 1.50 14.30 0.60 2.60 2.90 15
    1 x2 26/0.32 1.90 8.81 0.60 3.00 3.40 22
    1 x3 41/0.32 2.40 5.59 0.70 3.50 3.90 42
    1 x5 65/0.32 3.00 3.52 0.80 4.50 4.90 61
    1 x0.3f 15/0.18 0.80 48.90 0.50 1.80 1.90 6
    1 x0.5f 20/0.18 1.00 36.70 0.50 2.00 2.10 8
    1 x0.75f 30/0.18 1.20 24.40 0.50 2.20 2.30 11
    1 x1.25f 50/0.18 1.50 14.70 0.50 2.50 2.60 17
    1 x2f 37/0.26 1.80 9.50 0.50 2.90 3.10 24

    The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
