    AHFX-BS

    Japanese Standard Automotive Cable

    • AHFX-BS,Japanese Standard,Automotive Cable

    Application and Description

    This Fluororubber insulated single-core cable is used for HEV automobiles.

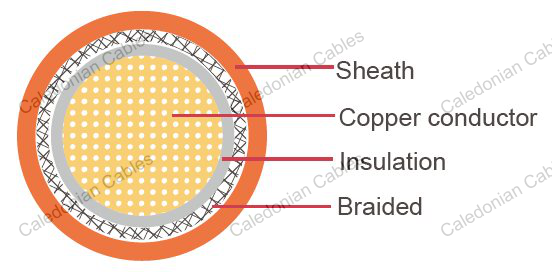

    Construction

    • Conductor: Tin plated copper
    • Insulation: Fluororubber
    • Braided:Shield tin plated copper
    • Sheath: Halogen free Polyolefine
    • Standard Compliance: KIS-ES-1121

    Technical Parameters

    Operating temperature:–40 °C to +200°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    max.
    Thickness
    Wall
    min.
    Shield
    Rate
    Overall
    Diameter
    max.
    Overall
    Diameter
    min.
    mm2 No./mm mm mΩ/m mm mm mm mm mm
    1x3 65/0.26 2.4 5.65 4.05 3.55 90 5.6 5.3
    1x5 65/0.32 3.0 3.72 4.9 4.3 90 7.3 6.5
    1x8 154/0.26 4.0 2.43 5.9 5.3 90 8.3 7.5
    1x15 171/0.32 5.3 1.44 7.8 7.2 90 10.75 9.85
    1x20 247/0.32 6.5 1.00 9.0 8.4 90 11.95 11.05
    1x25 323/0.32 7.4 0.76 10.6 9.8 90 13.5 12.5
    1x30 361/0.32 7.8 0.68 11.0 10.2 90 13.9 12.9
    1x40 494/0.32 9.1 0.52 12.3 11.5 90 16.25 15.15
    1x50 608/0.32 10.1 0.42 13.75 12.85 90 17.7 16.5

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
