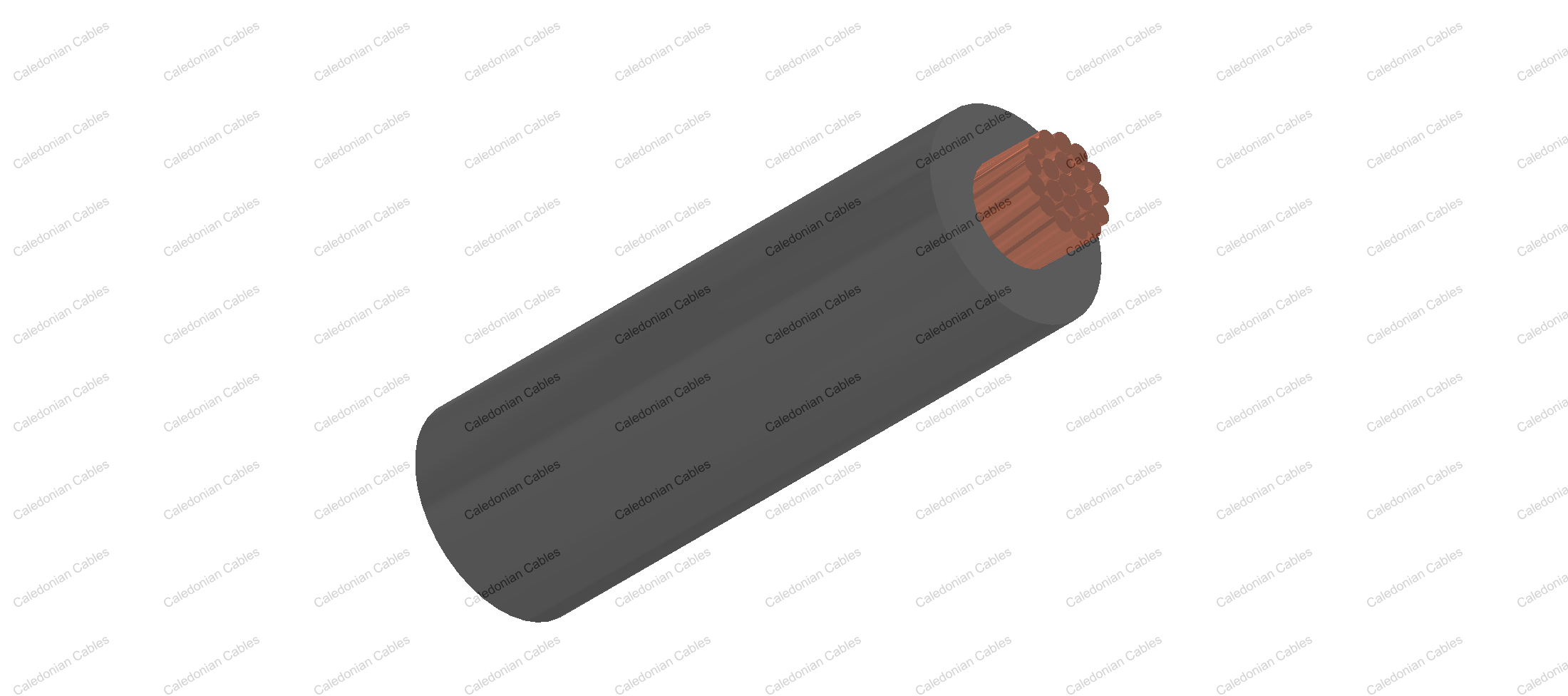

    AEXHF

    Japanese Standard Automotive Cable

    Application and Description

    This XLPE insulated single-core cable is used in low voltage circuits in automobiles(vehicles and motorcycles), Superior heat resistance with irradiated PE superior more than thermal resistance AEX type.

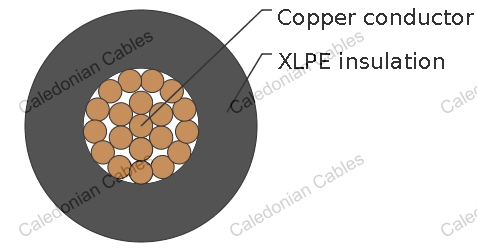

    Construction

    • Conductor: Tin coated annealed stranded copper.
    • Insulation: Cross-linked Polyethylene (XLPE)
    • Standard Compliance: ES SPEC

    Technical Parameters

    Operating temperature:–40 °C to +150°C
    Rated voltaage up to 60V

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x0.30 12/0.18 0.7 61.1 0.5 1.7 1.8 5.7
    1x0.50 20/0.18 1.0 36.7 0.5 1.9 2.0 8.0
    1x0.85 34/0.18 1.2 21.6 0.5 2.2 2.3 12.0
    1x1.25 50/0.18 1.5 14.6 0.6 2.7 2.8 17.5
    1x2.00 79/0.18 1.9 8.68 0.6 3.1 3.2 24.9
    1x3.00 119/0.18 2.3 6.15 0.7 3.7 3.8 37
    1x5.00 207/0.18 3.0 3.94 0.8 4.6 4.8 61.5
    1x8.00 315/0.18 3.7 2.32 0.8 5.3 5.5 88.5
    1x10.0 399/0.18 4.1 1.76 0.9 5.9 6.1 113
    1x20.0 247/0.32 6.3 0.92 1.1 8.5 8.8 216

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
