    AEXHF-BS

    • AEXHF-BS Japanese Standard Automotive Cable

    Application and Description

    This XLPE insulated cable is used in low voltage signal circuits in automobiles. Suitable for the consideration of the flexibility and thermal resistance.Suitable for the consieration of the shielding characteristic.

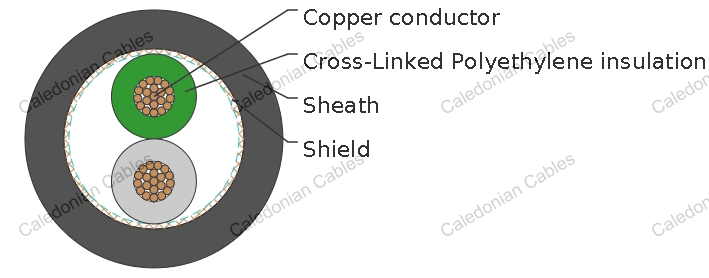

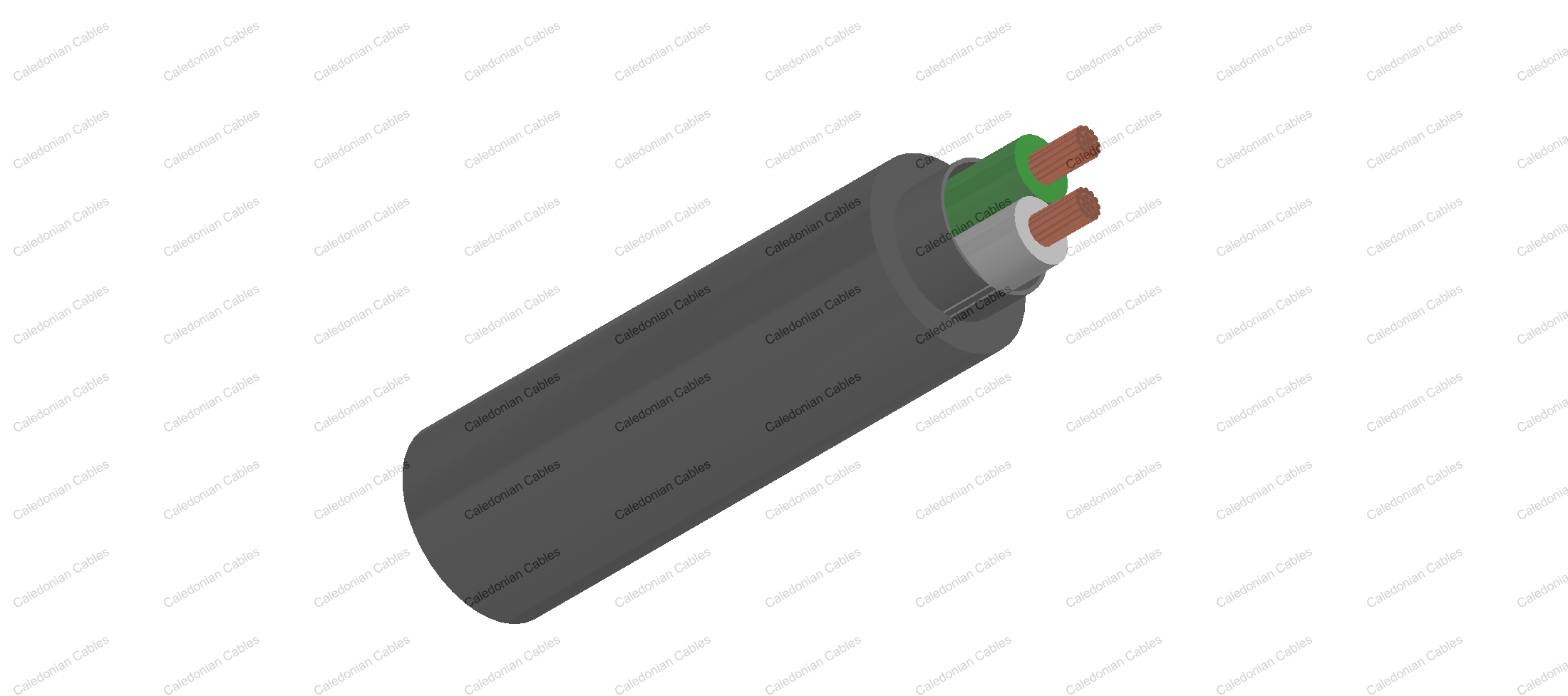

    Construction

    • Conductor: Annealed stranded copper
    • Insulation: Cross-Linked Polyethylene
    • Shield: Tin coated annealed copper
    • Sheath: Cross-linked Polyethylene
    • Standard Compliance: JASO D608; HMC ES SPEC

    Technical Parameters

    Operating temperature:–40 °C to +150 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    0.5(2C) 20/0.18 0.93 39.1 0.5 5.9 6.1 42.5
    0.85(2C) 34/0.18 1.21 23 0.5 6.6 6.8 55
    1.25 50/0.18 1.5 15.7 0.6 7.6 7.8 71.5

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
