    AEX/AVX

    Japanese Standard,Automotive Cable

    • AEX/AVX,Japanese Standard,Automotive Cable

    Application and Description

    This XLPE insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

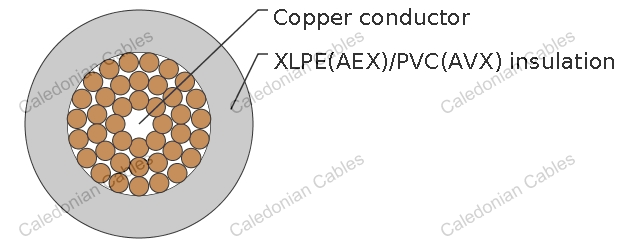

    Construction

    • Conductor: Cu-ETP1 according to JIS C3102
    • Insulation: XLPE (AEX)
      Crosslinked PVC (AVX)
    • Standard Compliance: JASO D 608-92

    Technical Parameters

    Operating temperature:–40 °C to +120 °C (AEX)
    Operating temperature:–40 °C to +100 °C (AVX)

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1 x0.50 7/0.32 1.00 32.70 0.50 2.00 2.20 8
    1 x0.85 11/0.32 1.20 20.80 0.50 2.20 2.40 11
    1 x1.25 16/0.32 1.50 14.30 0.60 2.70 2.90 16
    1 x2.00 26/0.32 1.90 8.80 0.60 3.10 3.40 25
    1 x3.00 41/0.32 2.40 5.60 0.70 3.80 4.10 38
    1 x5.00 65/0.32 3.00 3.50 0.80 4.60 4.90 59
    1 x8.00 50/0.45 3.70 2.30 0.80 5.30 5.60 86
    1 x15.00 84/0.45 4.80 1.40 1.10 7.00 7.40 145
    1 x0.50f 20/0.18 1.00 36.70 0.50 2.00 2.20 8
    1 x0.75f 30/0.18 1.20 24.40 0.50 2.20 2.40 10
    1 x 1.25f 50/0.18 1.50 14.70 0.60 2.70 2.90 16

    The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
