    AESSXF

    Japanese Standard Automotive Cable

    • AESSXF,Japanese Standard,Automotive Cable

    Application and Description

    This XLPE insulated single-core cable is used in low voltage circuits in automobiles(vehicles and motorcycles).

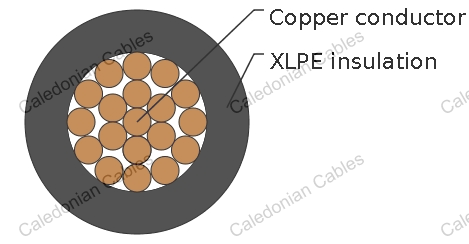

    Construction

    • Conductor: Annealed standed copper
    • Insulation: Cross-linked Polyethylene (XLPE)
    • Standard Compliance: JASO D611 ;ES SPEC

    Technical Parameters

    Operating temperature:–45 °C to +120 °C
    Rated temperature: 120°C
    Rated voltage up to 60V

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.
    Electrical
    Resistance at
    20°C
    Max.
    Thickness
    Wall
    nom.
    Overall
    Diameter
    min.
    Overall
    Diameter
    max.
    Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x0.22 7/0.2 0.6 84.4 0.3 1.2 1.3 3.3
    1x0.30 19/0.16 0.8 48.8 0.3 1.4 1.5 5.0
    1x0.50 19/0.19 1.0 34.6 0.3 1.6 1.7 6.9
    1x0.75 19/0.23 1.2 23.6 0.3 1.8 1.9 10
    1x1.25 37/0.21 1.5 14.6 0.3 2.1 2.2 14.3
    1x2.00 27/0.26 1.8 9.5 0.4 2.6 2.7 22.2
    1x2.50 50/0.26 2.1 7.6 0.4 2.9 3.0 28.5

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
