    LYST

    Applications

    These cables are used for connection between Control Tower and Constant Current Regulators (CCRs), suitable for transmission of voice data up to 2,000 kHz.

    Standards

    NF C 32 070 C2

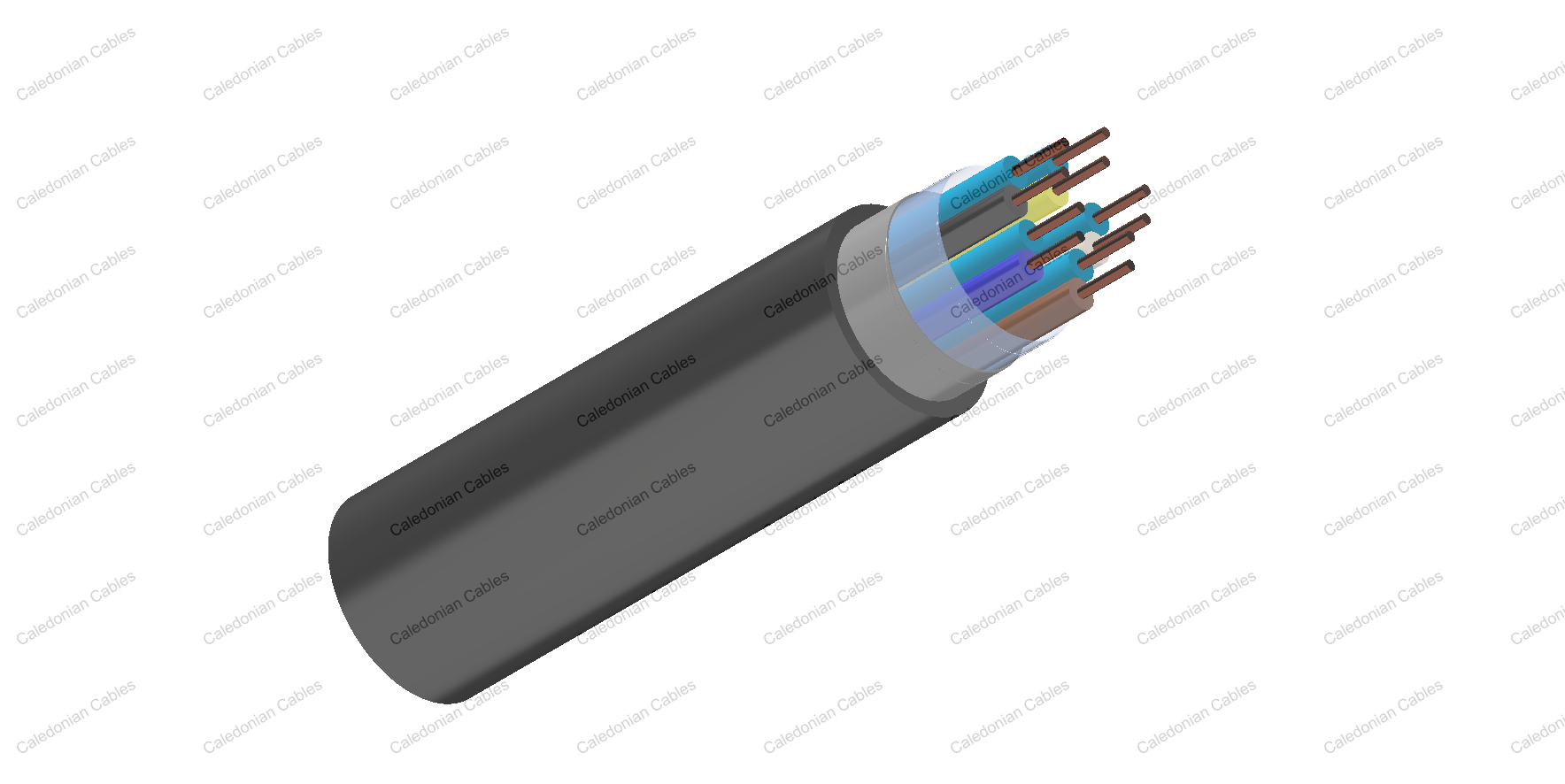

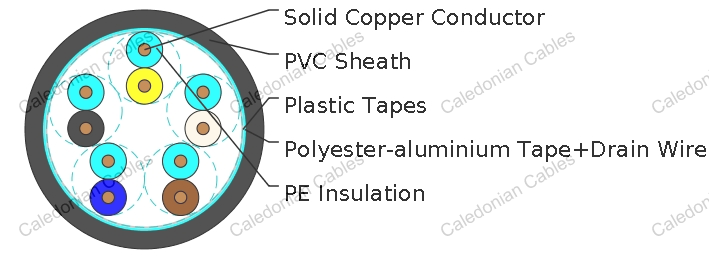

    Construction

    Conductor: Solid bare copper.
    Insulation: PE.
    Cable Element: Pairs.
    Separator: One or more plastic tapes.
    Shield: Polyester-aluminium tape with drain wire.
    Sheath: PVC.

    Technical Data

    Rated Voltage Uo/U (Um) 200V
    Maximum Conductor Temperature 90℃
    Short Circuit Temperature 250℃
    Operating Temperatures -15℃~+70℃
    Minimum Bending Radius static: 6×OD; dynamic: 12×OD
    Lead Free Yes

    Dimensions and Weight

    Construction AWG Nominal Overall Diameter Nominal Weight
    No. ×mm² - mm kg/km
    1×2×0.20 24 3.6 18
    2×2×0.20 24 4.5 27
    3×2×0.20 24 5.0 33
    5×2×0.20 24 6.0 47
    10×2×0.20 24 7.2 77
    15×2×0.20 24 8.2 104
    30×2×0.20 24 11.0 193
    56×2×0.20 24 14.7 334
    112×2×0.20 24 19.5 626
    1×2×0.50 20 4.8 31
    2×2×0.50 20 7.0 57
    3×2×0.50 20 7.2 70
    5×2×0.50 20 8.6 97
    10×2×0.50 20 11.3 174
    15×2×0.50 20 12.9 236
    30×2×0.50 20 16.8 441
    56×2×0.50 20 23.4 799
