Applications
These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational aids, and obstruction lighting, can be installed in conduit and direct burial.
Standards
FAA L-824 Type B
ICEA S-96-659/NEMA WC71

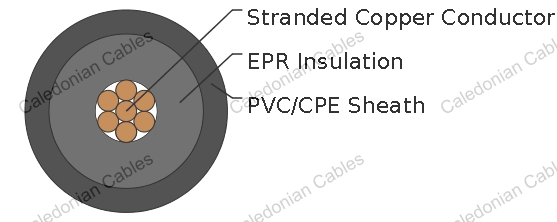

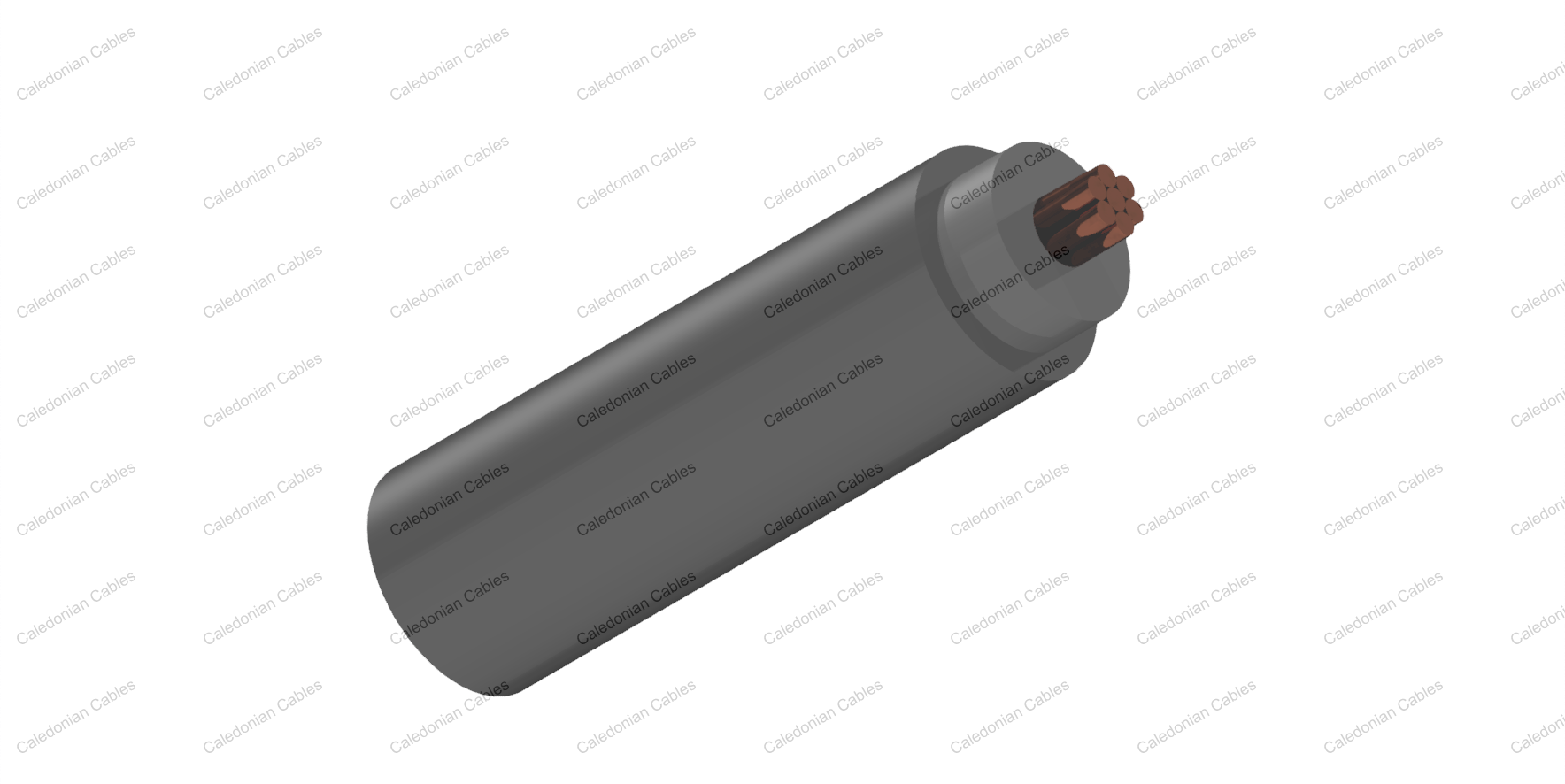

Construction
Conductor: Stranded bare or tinned copper conductor.
Insulation: EPR.
Sheath: CPE/PVC.
Technical Data
| Rated Voltage Uo/U (Um) | 5kV |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | -40℃~+85℃ |
| Minimum Bending Radius | 5×OD |
| Halogen Free | Yes |
| Abrasion Resistant | Yes |
| UV Resistant | Yes |
| Oil Resistant | Yes |
Dimensions and Weight
| Construction | No. of Strand |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| No. ×mm²/ AWG |
- | mm | inches | mm | inches | mm | inches | kg/km | lbs/kft |
| 1×6mm² | 7/19 | 2.3 | 0.09 | 1.2 | 0.05 | 10.0 | 0.39 | 150 | 101 |
| 1×8 | 7/19 | 2.3 | 0.09 | 0.76 | 0.03 | 10.7 | 0.420 | 180 | 121 |
| 1×6 | 7/19 | 2.3 | 0.09 | 0.76 | 0.03 | 11.7 | 0.460 | 238 | 160 |
| 1×4 | 7/19 | 2.3 | 0.09 | 0.76 | 0.03 | 12.8 | 0.505 | 326 | 219 |
